Pelton Wheel Turbine Test Rig

Listing ID #774259

Get Latest Price

Supply Type Supplier
Preferred Buyer Location India only

We are bracketed among the distinguished Manufacturers and Suppliers of Pelton Wheel Turbine Test Rigs. Our unit shows the construction and working of Pelton Wheel Turbine. It consists of Pelton....

View More Details

Send Enquiry

Product Details

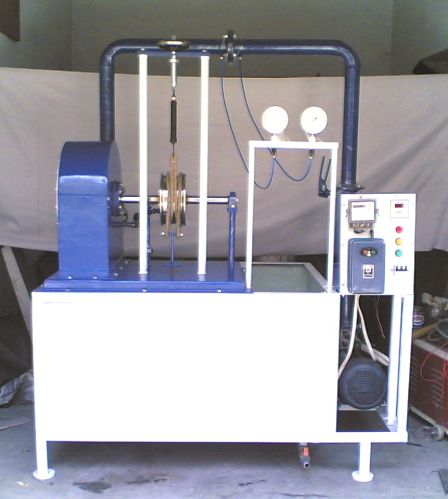

We are bracketed among the distinguished Manufacturers and Suppliers of Pelton Wheel Turbine Test Rigs. Our unit shows the construction and working of Pelton Wheel Turbine. It consists of Pelton wheel rotate by the jet of water supplied from centrifugal pump. Rope break dynamometer is used to measure the output of turbine. Pressure Gauge and Orificemeter are used to measure the input of turbine

Specifications :

This Pelton Turbine Test Rig 65mm size to develop 2 HP at 1000 RPM with a flow of about 450 Ipm at 30 meters supply head-Supply pump set suitable for supplying water to the above turbine Monobiock Centrifuge) l\imp - (5 HP, 3 Phases, 440V)
Pump Size - Suction size 50mm & Delivery size 40mm
Pump Discharg - 420 LPM
Delivery Head - 27 meter
RPM - 3000 RPM

Sump Tank :

MS Tank to store sufficient water for independent circulation through the unit experimentation and arrange within the floor space of main unit. Capacity 650 Ltr.
Runner coupled to pelton wheel. Rope Bake Dynamometer is used to measure the output Runner diameter 220mm.
Spring Balance 6 kg (Salter Make).
Discharge Butter Fly valve used to control the flow-rate of water.
Pressure Gauge of 4.2 kg/crn2 is used to measure the pressure head.
Rigid MS frame work compactly fitted with all the above items as a self-sufficient package unit suitable for operation without any foundation
Switch and starter suitable for above motor pump set mounted on the control panel board

Experimental Capabilities :

To determine the efficiency of Turbine
To draw the characteristics curve of Turbine
