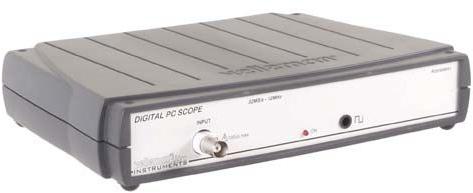

Contact SupplierPC BASED 1 CHANNEL OSCILLOSCOPEMODEL : PCS100FeaturesGeneral information1 channelInput impedance : 1 Mohm / 30pFFrequency response ±3dB: 0 Hz to 12MHzMaximum input voltage : 100V (AC + DC)Input coupling : DC, AC and GNDOptical ISOLATED from computerSupply voltage : 9 - 10Vdc / 500MaSpecificationsTransient RecorderTimescale : 20ms/Div to 2000s/DivMax record time : 9.4hour/screenAutomatic storage of dataAutomatic recording for more than 1 yearMax. number of samples : 100/sMin. number of samples : 1 sample/20sMarkers for time and amplitudeSpectrum AnalyzerFrequency range : 0 .. 400Hz to 16MHzLinear or logarithmic timescaleOperating principle : FFT (Fast Fourier Transform)FFT resolution : 2048 linesFFT input channel : CH1 Zoom functionMarkers for amplitude and frequencyOscilloscopeTrigger source : CH1 or free runTrigger edge : rising or fallingTrigger level : adjustable per 1/2 divisionStep interpolation : linear or smoothedInput sensitivity : 10mV to 3V/division True RMS readout (only AC component)Record length : 4079 samples Sampling frequency : Real time 800 Hz to 32 MHzTime base : 0.1us to 100ms per divisionStep markers for voltage, time and frequencyVertical resolution : 8 bitAuto setup function.
