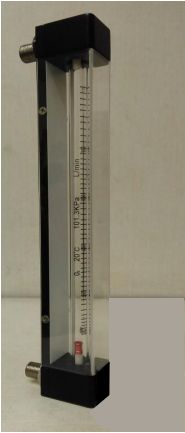

Panel Mounting VA Flowmeter

Listing ID #6152672

Get Latest Price

Repeatability± 0.5%
Maximum operating pressure1400 kPa (14 bar)
O-Ring materialViton, Neoprene
Rangeability10:1
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Repeatability ± 0.5%
Float stop material Teflon, PA
Maximum operating temperature 120 Deg C
Rangeability 10:1
Maximum operating pressure 1400 kPa (14 bar)
O-Ring material Viton, Neoprene
Tube packing material Viton, Neoprene

DESCRIPTION
The CM series of flowmeters provide an economical means of flow rate indication and control for general use, and laboratory applications. The instruments are ideal for common applications like purging services, cooling water flow indication, bearing lubrication, carrier gas flow rate indication, fuel flow indication, in chromatography and atomic absorption and indication and control of doping gas in electronic crystal growing furnaces.
DESIGN FEATURES :

Ten to one rangeability
Heavy wall, precision bore, borosilicate glass metering tubes with contrasting background
Scales fused on metering tubes, or scales with conversion chart
Tube sealed on compression gaskets by threaded seal
Easy removable tubes without disconnecting the instrument
There is no metal side plate. Single piece acrylic covers front and side for easy visibility.

Download

Download Detail File : Click Here

Graph Image

Download Detail File : Click Here

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

The company was established as Chemicals & Meters in 1967 by Raju Venkateswar (1929-94), a US-trained chemical engineer. CM Flowmeters (India) Pvt. Ltd. (an ISO 9001:2016 company) was established in 1967. The company is a reputed manufacturer and worldwide exporter of Rotameters (Variable Area Flowmeters) for industrial, scientific and medical applications. Our product range comprises various types of Industrial Rotameters, virtually any type of Anaesthetic Rotameter, complete Anaesthetic Rotameter Units together with anti-hypoxia device, and Paediatric Oxygen Rotameters.
