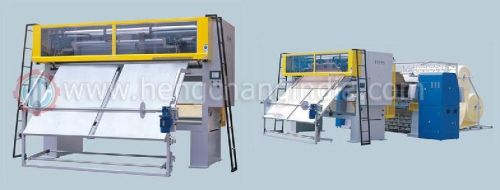

Panel cutting machine

Listing ID #3926595

Get Latest Price

Air Pressure0.4 - 0.8 Mpa
Width100-2500 mm
Tickness3-80mm
Speed7000 mm/min
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Weight 5100X1500X2000(mm)
Width 100-2500 mm
Speed 7000 mm/min
Air Pressure 0.4 - 0.8 Mpa
Power Supply 380V/50Hz, 220V/ 60Hz
Tickness 3-80mm
Weight 1500kg

Special Functions

Hengchang quilting machine Panel cutting are high speed, accuracy and high productivity, greater yield and more profitably.

Touch-screen Easy and intelligent program inbuilt to operate the machine. No need to skill operator.

Hc Panel cutter Reduce man power energy, Raw material waste (fabric, foam, wadding, non woven threads) and cost saving machine. No need to additional man power, quilting operator is enough it's set once automatically cuts.

Hc panel Cutter understands the input feeding and automatically adjust the quilting machine speed. Highly intelligent and accurate size it can cuts the quilt panel.

Pillow top and fabric Cover can cut this Cutter.

Mattress panel cutter trims both side edges as per required size, its cuts quilted panel to length wise also.

CE certificated electrical and electronic devices are used, which greatly reduce the break down and the long life of the machine.

This hc cutter quilt cutter cuts panels and also rolls of the quilt panels up 100 meters depending on the quilt thickness.

Border Slitter blade are designed for the safety aspects and placed right place for the human safety.

Touch screen controlling for pannel cutter side blade and pneumatic sharpening device pannel Cross cut disk cutter, time for round-way movement of crosscut blade.

The roller accumulators are preferably used for synchronizing a continuously operating production range and a discontinuously operating winder respectively unwinder at batch change.

Such the accumulator picks up the running Quilted panel lane whilst the Quilted panel behind the spindle driven accumulator has to be stopped.

A sensitive tension adjustment inside the roller accumulator is ensured upon feeding as well as emptying depending on the material.

INNOVATIVE FUNCTION INTRODUCTION
Computer controlled panel cutting machine.
Designed to work with Quilting Machine or on its own .
Machine is capable of cutting quilted panels, borders, trimming sides or material rolling.
PLC control and touch screen for easy operation .
Encoder setting of panel lengths for your own dimension cutting.
Infrared setting of panel lengths for accurate panel cutting blades, pneumatic material pressing system and pneumatic material pulling system to press and pull material automatically.
Reliable border feed and cutting mechanism.
Auto Working Table and width adjustable design for precise length.
Stable, vibration free operation with low noise and high efficiency
