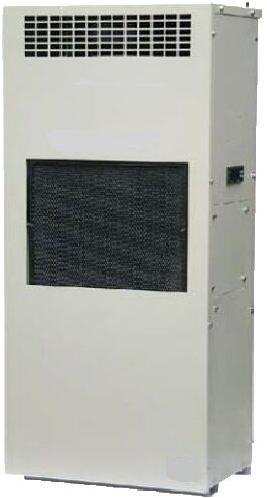

Panel Air Conditioner

Listing ID #4271130

25,000 - 45,000 / piece

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Panel Air Conditioner Panel Air conditioner utilizes closed loop design to maintain clean and cooled air in electronic panel. To achieve this two entirely separate air circulation circuits are....

View More Details

Send Enquiry

Product Details

Panel Air Conditioner

Panel Air conditioner utilizes closed loop design to maintain clean and cooled air in electronic panel. To achieve this two entirely separate air circulation circuits are provided in Panel Air Conditioner. One circulation circuit sucks hot clean air from down of electronic control panel in to panel air conditioner and after passing it across evaporator of Panel Air Conditioner becomes cooled and dehumidified. Same cooled and dehumidified air is supplied to electronic control panel from top of the Panel Air Conditioner. The second circulation circuit makes use of ambient air to remove heat out of condensers and then to atmosphere from panel air conditioner. These two air circuit are separated by a partition in Panel Air Conditioner to ensure closed loop design and to keep electronic components of control panel away from dust and humidity present in factory shop floor.

Application of Panel Air Conditioner

CNC Machine Tools
Robotics
Control Panel
Automation Equipments
Food Processing Industry

Technical Specifications Of Panel Air Conditioner

S. No.	Model	SIGMAC01	SIGMAC02	SIGMAC03	SIGMAC07
1	Capacity – Kcal/Hr	900	1350	2000	3000
2	Capacity – Watts	1050	1575	2325	3500
3	Power input	1F -230V-50Hz
4	Power Watts	750	900	1400	1750
5	Refrigerant	R-134A (Eco-friendly)
6	Dimension – mm (LWH )	390X250X650	390X250X650	390X250X650	390X250X650

Company Details

Sigma Technologies is a leading Air conditioning (HVAC)/ Air cooling solution provider to the industry, commercial building and domestic users since 2015. It has a highly reliable and integrated capability of delivering range of services spanning the entire range of air –conditioning systems from Ductable, Split AC to Central plants for industry as well as commercial and domestic application. SAEPL is renowned for successfully delivering large complex business and technology integration program, within the constraints of time, quality and budget.
MISSION
Our Mission is to build on our history of product excellence and technology innovation to provide the highest quality and most reliable system such as Air washer, Oil chiller, Air conditioning & ventilation.
RESOURCES
SAEPL has a total strength of >125 technically qualified (Combination of Degree, diploma and ITI’s) staff to render services in all aspects of HVAC system. Most of them are trained by OEMs like Daikin and Hitachi. SAEPL has its own design team for all the HVAC Job. SAEPL also Provides Consultancy Service regarding Air Conditioning/ Air Cooling Solution on the basis of optimum utilization.
COMPLIANCE TO REGULATIONS
SAEPL adopts a culture of compliance to all regulation and is duly registered for PF, ESI and service Tax etc.
SAEPL executes comfort air-conditioning as well as industrial & precision Air conditioning.
SAEPL provides controlled Air quality solution for the different industrial requirement in pharmacy, electronic lab and automotive sectors.
