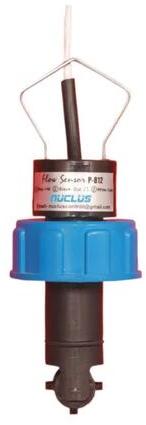

PP Paddle Wheel Flow Sensor

PP Paddle Wheel Flow Sensor

Listing ID #6652053

5,800 / Piece
Get Latest Price
  • MaterialPP
  • BrandCARE
  • Cable Length5 m (16.4 ft.)
  • Frequency38 Hz per m/s nominal (11.6Hz per ft/s nominal)
  • Supply Type Manufacturer, Exporter, Supplier, Trader
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

Care process Instruments
Subhash Bridge, Ahmedabad, Gujarat
View Number
  • Member Since 7 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Material PP
  • Weight 150GM
  • Flow Rate Range 0.5 to 5 m/s (1.6 to 16.4 ft./s)
  • Connection Type THREADED
  • Supply Voltage 10 to 24 VDC regulated
  • Wetted Parts Sensor Body Polypropylene (black) or PVDF (black) SS 304 / SS 316
  • Accuracy 1%
  • Supply Current Less Than 20 mA @ 10 to 24 VDC
  • Linearity +1% of full range
  • Brand CARE
  • Min Reynolds Number Required 4500
  • Media WATER
  • Frequency 38 Hz per m/s nominal (11.6Hz per ft/s nominal)
  • Operating Temperature PP 10oC to 70oC (14oF to 158oF) ,PVDF 10oC to 100oC (14oF to 212oF)
  • Rotor Black PVDF
  • Pipe Size Range 15 NB to 300 NB (0.5 to 12 in.)
  • Usage/Application FLOW MEASURE
  • Cable Length 5 m (16.4 ft.)
  • Rotor Pin Hastelloy C
  • Air Velocity NO
  • Repeatability +0.5% of full range
  • Model Number P812
  • O Rings Viton / PTFE
  • Output Type Pulse output ( NPN )
  • Operating Pressure PPmax10 bar(145 psi) @ 25oC ,PVDF max12 bar(175 psi) @ 25oC
  • Design STANDARD
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry
Tell us your Buy Requirement to Get Instant Response
Tell us what you need?

Looking for Paddle Wheel Flow Sensor?

Quantity
Seller Contact Details
View Mobile No Send Enquiry

Find similar products

Browse Related Categories

Waiting for permission
To search by voice, go to your browser settings and allow access to microphone

Allow microphone access to search with voice
PP Paddle Wheel Flow Sensor at Rs 5,800 / Piece in Ahmedabad - ID: 6652053
Sales : +91-9953717914 | Support : +91-9700318318
Products / Services
  • Products / Services
  • Companies
  • Buy Leads
Post Buy Requirement
PP Paddle Wheel Flow Sensor

PP Paddle Wheel Flow Sensor

Listing ID #6652053

5,800 / Piece
Get Latest Price
  • MaterialPP
  • Rotor PinHastelloy C
  • Supply Voltage10 to 24 VDC regulated
  • Cable Length5 m (16.4 ft.)
  • Supply Type Manufacturer, Exporter, Supplier, Trader
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

Care process Instruments
Subhash Bridge, Ahmedabad, Gujarat
View Number
  • Member Since 7 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Material PP
  • Wetted Parts Sensor Body Polypropylene (black) or PVDF (black) SS 304 / SS 316
  • Model Number P812
  • Output Type Pulse output ( NPN )
  • Supply Current Less Than 20 mA @ 10 to 24 VDC
  • Supply Voltage 10 to 24 VDC regulated
  • Cable Length 5 m (16.4 ft.)
  • O Rings Viton / PTFE
  • Frequency 38 Hz per m/s nominal (11.6Hz per ft/s nominal)
  • Design STANDARD
  • Repeatability +0.5% of full range
  • Brand CARE
  • Linearity +1% of full range
  • Media WATER
  • Air Velocity NO
  • Operating Temperature PP 10oC to 70oC (14oF to 158oF) ,PVDF 10oC to 100oC (14oF to 212oF)
  • Rotor Black PVDF
  • Connection Type THREADED
  • Rotor Pin Hastelloy C
  • Pipe Size Range 15 NB to 300 NB (0.5 to 12 in.)
  • Flow Rate Range 0.5 to 5 m/s (1.6 to 16.4 ft./s)
  • Operating Pressure PPmax10 bar(145 psi) @ 25oC ,PVDF max12 bar(175 psi) @ 25oC
  • Usage/Application FLOW MEASURE
  • Accuracy 1%
  • Min Reynolds Number Required 4500
  • Weight 150GM
