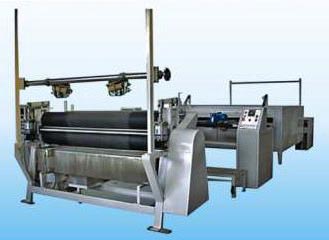

Pad Drying Machine

Listing ID #1948901

The Pad Drying Machine is a very effective machine for continuous pad dry process of woven fabric. The Pad Drying Machine comes with a vertical padding mangle that is harmonized with a hot air drier in it. We are one of the most sought after Manufacturer, Exporter and Supplier of Pad Drying Machine that is available in different models for the production of 200, 1500, 3000, 4200 & 6000 meters per day.

Features :

• Speed Synchronization of padding mangle with IR pre drier and hot air chamber for continuous process
• IR pre drier between pad and hot air chamber is raised when drive stops
• Variable power to control the level of pre drying
• Variable digital speed control
• Variable digital pressure control
• Variable digital temperature control.
• Electrical heating for generating hot air or a combination of electrical and gas heating or a combination of steam heating and electrical heating.
• Moving chain with clips and pins with differential width to hold the fabric in stretched position
• Blowers for even distribution of hot air in chamber
• Motorized adjustable working width from 600 mm to maximum working width in each model
• Digital control and readout for speed temperature and pressure
• Edge uncurler at in feed of hot air chamber
• Fabric centering device at infeed
• Motorized fabric spreader scroll roller at in feed
• Heated chemical trough with digital controller.
• Batching roller at entry and exit of machine

•

  Technical Information (Working Width):

  • 600mm, 1200mm, 1600mm & 1900mm

  • Cloth speed : 05 to 5meters minutes depnding upon models

  • Padding mangle

  • Padding mangle : Vertical

  • Roller Dia : for 600mm WW : 120mm

  • For 1200mm and above : 250mm

  • Roller Coating : Synthetic Rubber

  • Rubber Hardness : 65o to 70o shore hardness

  • Nip pressure : Max 4 kg cm^{2 (Digital control and Readout)}

  • • Drive : Variable speed through frequency controller.

    • Chemical Trough capacity : 1.5 lit to 30 lit depends upon models

    • Synchronization : Synchronized with IR pre drier and hot air chamber

    • IR Pre Drier – hot air drying

    • Working width (mm) : 600m 1200, 1600m & 1900

    • Maximum temperature for 600mm : 185 ^oC

    • For other big models : 135 ^oC

    • Heating : Electrical heating

    • Heating Load : 12 kw to 100kw depending upon models

    • Electric supply : 415v Three ɸ

    •

      Option :

      • Roller with Silicon rubber coating

      • Gas Fired Steam Radiator for heating.
