Product Details

Product Category : Instrumentation and Control System Lab Trainer (Series: 1000)
Product Name : P,PI,PID Control System- Temperature control
Model No.: SE-1027

Product Details

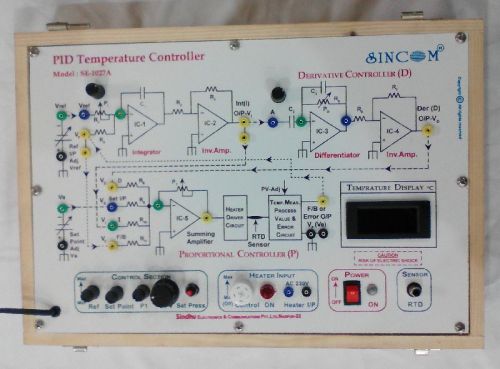

This has Built-In DC +5V/±12V/500mA regulated fixed Power supply, Variable Reference input adjust, Variable Set Point input control, temperature process P,PI,PID control system, RTD as Temperature sensor, 31/2 digit LED type Temperature Indicator (0C) display, the Temperature controller circuit has Op-Amp IC 741 based Integrator with amplifier as "Integral Controller (I)" and Op-Amp IC 741 based Differentiator with amplifier as "Derivative Controller (D)" wired with Op-Amp based summing amplifier and error controller as "Proportional Controller (P)" to drive the AC Heater input and maintained the temperature of the heater at desired preset value, facility to select P/PI/PID control process, facility to control AC Heater condition, on board Ref/set point/ feedback gain/temp set/PI-Gain/PD-Gain/P-Gain controllers, Electrical Heating arrangement, complete setup with maximum test points.

Objectives :
- To Study the Principle of P,I,D Controller.
- To Study the Operation of PID Temperature controller.
- To Study the Temperature controller in Open Loop.
- To Study the Temperature controller in Closed Loop-PID mode.
- To Observe and note the ON/OFF of AC Heater at the set value in closed loop.

Accessories Included : Electrical Heating Arrangement, Set of Patch Cords, Operating Manual.
