Geo Grids

Listing ID #1519840

Geogrid is a grid like geosynthetics product manufactured from p.p / polyester polymers coated with PVC.
Geogrid is flexible and offers superior tensile reinforcement. The geogrid consists of polyester yarns with a protective polymer coating, either PVC or Epoxy. It is available as a uni-axial and bi-axial geogrid and can be supplied in diverse mesh sizes.
The standard strength is between 40kN/m and 200kN/m. However, for special application we are able to produce strength over 800kN/m and the single junction strength over 700kgf. As for the dimension, the normal width is 3.9m or 4m and roll length is 50m or 100m.
Geogrid is a very cost-effective product comparing to the traditional RC structure. The main application for Geogrid are reinforced retaining walls, slope stabilization, sediment control, reinforcement and embankment.
APPLICATION

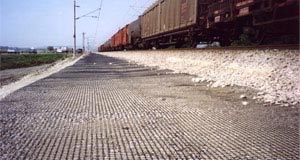

• Sub grade Stabilization
• Soil Reinforcement
• Embankment
• Steep slopes
• Vertical walls
