Contact SupplierBASIC PRINCIPLE :

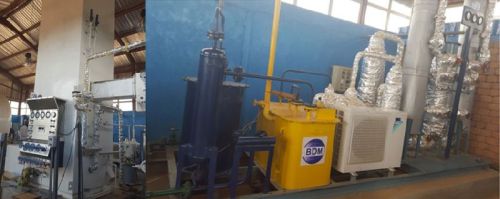

Our company uses the latest technology and internationally approved components in the manufacturing of the oxygen and nitrogen generating plants. The systems are popular for having a number of features for instance low power requirement, low upkeep expense and maximum output. We are a Certified EOU (Export Oriented Unit) company so enjoying the facility of purchasing raw materials at tax free rates and, in turn, providing the plants at competitive rates. Our company along with its designing and manufacturing facilities is approved all over the world for exceptional skill in designing, manufacturing, install lation and commissioning of our products.
SALIENT FEATURES OF THE PLANTS :Note:Â Due to the latest liquid oxygen pump technology, there is now no need of old type of bulky oxygen compressors, no more break downs, moisture or rusting in cylinders.
SCOPE AND SUPPLY :Our air compressors are supplied as per buyers’ choice. We offer a wide range of air compressors.The A-grade air compressors enhance life span and output quality of our machines.
Process skid is very compact. All equipments are mounted on processed skid complete with gas/air/water lines for high purification of air. It is comprised of the following:
Â
Air separation column-cold box consists of outer steel casing, main heat exchanger, liquifier, bottom column, top column, condensor, sub-cooler, liquid oxygen & nitrogen filter. Cooling pipe line, insulation material, digital electronic temperature indicator & scanner, pt 100 sensor, dp gauge monometer, expansion valve with long stem type with pointer & index & wheel.
Complete with Motor/starter/starter shall be Siemens/ABB/Kirloskar, with hydraulic valve control bursting disc for safety, complete with Flywheel pressure gauge, Motor pulley V-Belts,Belt Guard slide rails interconnecting copper pipes (Inlet & Outlet)
Liquid Oxygen passes from the condenser to the liquid oxygen pump for filling gas into cylinders. The cylinder filling is done through the integrated liquid oxygen pump (Connected to cold box) which is designed to fill oxygen gas into cylinders at high pressure of 155-200 bar.
The CYLINDER FILLING MANIFOLD system provided with the oxygen cylinder filling plant is made to sustain high pressure at 155- 200 bar continuously.
MODEL | CAPACITY | CYLINDERS FILLED PER DAY | OXYGEN PURITY | NITROGEN PURITY Optional |
---|---|---|---|---|
BDMP-50 | 50 m3/hr | 200 | 99.7% | 99.99% |
BDMP-80 | 80 m3/hr | 320 | 99.7% | 99.99% |
BDMP-100 | 100 m3/hr | 400 | 99.7% | 99.99% |
BDMP-130 | 130 m3/hr | 500 | 99.7% | 99.99% |
BDMP-150 | 150 m3/hr | 600 | 99.7% | 99.99% |
BDMP-170 | 170 m3/hr | 680 | 99.7% | 99.99% |
BDMP-200 | 200 m3/hr | 800 | 99.7% | 99.99% |
BDMP-250 | 250 m3/hr | 1000 | 99.7% | 99.99% |
BDMP-300 | 300 m3/hr | 1200 | 99.7% | 99.99% |
BDMP-400 | 400 m3/hr | 1600 | 99.7% | 99.99% |
BDMP-500 | 500 m3/hr | 2000 | 99.7% | 99.99% |
BDMP-600 | 600 m3/hr | 2400 | 99.7% | 99.99% |
