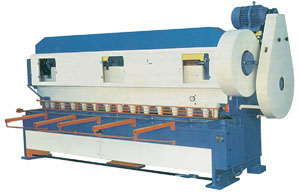

Overcrank Mechanical Motorised Shearing Machine

Listing ID #3815371

Get Latest Price

Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

Shearing Machines have been designed and developed through structural analysis technique for continuous production, accuracy and repeatability having the following main features: Frame : Rigid....

View More Details

Send Enquiry

Product Details

Shearing Machines have been designed and developed through structural analysis technique for continuous production, accuracy and repeatability having the following main features:

Frame :
Rigid steel frame of shears are optimally designed to avoid week sections at load support and is of interlocked design.The ram is guided throughout its length by accurate machined guideways ensuring proper clearance and clean cut.

Hold-down system :
Spring loaded mechanical Hold down pads hold the sheet securely, to avoid slipping and bowing resulting in clean square cuts. Holddown units are provided with oversize pads to avoid impressions on sheet metal on request.
Hold-down system :
Hydraulic Hold down pads are accurate calm operated pump. Hydraulic Hold down pads hold the sheet securely, to avoid slipping and bowing resulting in clean square cut. Hold down units are provided with oversize pads to avoid impressions on sheet metal on request at extra cost.

Knives :
Shears are provided with high quality single segment (HcHcr) Knives for longer tool elite. Ease in assembling of knife reduces down-time. The knife blades are four edged.
Lubrication :
All bearing parts and guide surfaces are lubricated through hand-operated lubrication system.

Mechanical backguage :
This is standard equipment provided on all shears. Scale on backguage gives instantaneous reading of distance between shear and backguage. Thus avoiding errors and maintenance in electronic equipment.
Finger guard :
Fitted in front of hold-down for operator protection without abstructing viewing.

Model	Cutting Cap.In M.S Length X Thichness	Depth of Throat	Stroke Per Minute	Table Eight	Table Width	Front Gauge	Rear Gauge	Motor HP/KW	Blade Length x Width x Thick	Overall Dime. in mm
										Len.	Bre.	Hei.
										A	B	C
AMI-1	1270 x 6	80	30	770	450	600	750	7.5/5.6	1270 x 75 x 18	2250	1950	2300
AMI-2	1525 x 6	80	30	770	450	600	750	7.5/5.6	1525 x 75 x 18	2500	1950	2300
AMI-3	2030 x 6	80	30	770	450	600	750	10/7.7	2030 x 75 x 18	3000	1950	2300
AMI-4	2540 x 6	80	30	770	450	600	750	10/7.7	2540 x 75 x 18	3550	1950	2300
AMI-5	3125 x 6	80	30	770	450	600	750	15/11.2	3125 x 75 x 18	4100	1950	2400
AMI-6	1270 x 8	80	30	770	450	600	750	10/7.7	1270 x 75 x 18	2350	1950	2300
AMI-7	1525 x 8	80	30	770	450	600	750	10/7.7	1525 x 75 x 18	2570	1950	2300
AMI-8	2030 x 8	80	25	800	450	600	750	12.5/9.7	2030 x 75 x 18	3150	1950	2500
AMI-9	2540 x 8	80	25	800	450	600	750	15/11.2	2540 x 75 x 18	3670	1950	2500
AMI-10	3125 x 8	80	25	800	450	600	750	20/15	3125 x 90 x 18	4250	1950	2600
AMI-11	1270 x 10	80	25	800	450	600	750	12.5/9.7	1270 x 90 x 18	2400	1950	2500
AMI-12	1525 x 10	80	25	800	450	600	750	12.5/9.7	1525 x 90 x 18	1950	1950	2500
AMI-13	2030 x 10	80	25	800	450	600	750	15/11.2	2030 x 90 x 18	3200	1950	2600
AMI-14	2540 x 10	80	25	800	450	600	750	20/15	2540 x 100 x 22	3700	1950	2600
AMI-15	3125 x 10	80	25	800	450	600	750	25/18.7	3125 x 100 x 22	4300	1950	2600
AMI-16	1270 x 13	80	25	800	450	600	750	15/11.2	1270 x 100x 22	2480	1950	2600
AMI-17	1525 x 13	80	25	800	450	600	750	15/11.2	1525 x 100 x 22	2740	1950	2600
AMI-18	2030 x 13	80	25	800	450	600	750	20/15	2030 x 100 x 22	3250	1950	2600
AMI-19	2540 x 13	80	25	800	450	600	750	25/18.7	2540 x 100 x 22	3750	1950	2600
AMI-20	3125 x 13	80	25	800	450	600	750	30/22.5	3125 x 100 x 22	4350	1950	2600
AMI-21	1270 x 16	80	25	800	450	600	750	20/15	1270 x 100 x 25	2690	2100	3100
AMI-22	1525 x 16	80	25	800	450	600	750	20/15	1525 x 100 x 25	2950	2100	3100
AMI-23	2030 x 16	80	25	800	450	600	750	25/18.7	2030 x 100 x 25	3450	2100	3100
AMI-24	2540 x 16	80	25	800	450	600	750	30/22.5	3540 x 100 x 25	3950	2200	3100
AMI-25	3125 x 16	80	25	800	450	600	750	40/30	3125 x 100 x 25	4500	2200	3150
