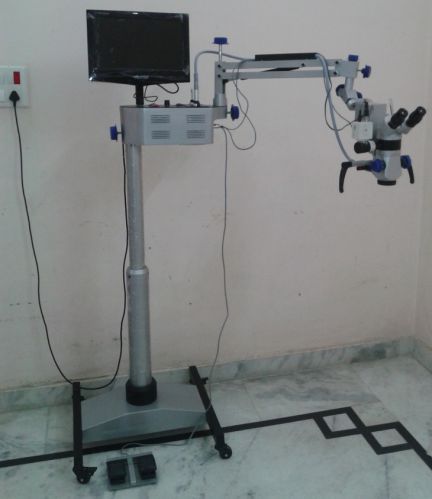

Contact SupplierWe are offering surgical operating microscope.
Specifications:-
head: indian zoom optical system
zoom ratio: 6 : 1
binocular tubes: 45 degree inclined binocular optical head
magnification: 5 steps magnification i.e., 4x, 6x, 10x, 16x & 25x
eye pieces: 10x w.f. (pair)
objective lens: f = 200 mm (300 mm and 400 mm on request)
field of view: 50 mm
i.p.d adjustment: 55 mm to 75 mm
fine focusing: motorized foot control
illumination: 15v-150w twin halogen lamps with 100% coaxial through the lenses focused fiber optics light guide 1.5 meter, bright light more than 80,000 lux when maximum.
Field of illumination: 70 mm
arm: counter balanced pantographic arm with 320 degree rotation.
Vertical range of counter balanced arm: 250 mm to 300 mm
floor stand: mobile floor stand on caster wheels for easy handling and absolute stability.
Base: 600 mm x 500 mm (approx.)
height: 1500 mm (approx.)
gross weight: 70 kgs (approx.)
vol. Weight: 50 kgs (approx.)
power: ac 220v, 5060 hz. (100v on request)
spares: dust cover for covering the microscope, set of sterilizable of silicon caps, 15v-150w bulbs, fuses.
Optional accessories:-
a. Beam splitter with c-mount
b. Samsung ccd camera for live view
c. 16” led screen
