Features
DIN rail mountable
FourFiveSixEight optoisolators on single board
LED indication for input signal
Positive supply commonnegative supply common selection by jumpers
234 Outputs can be grouped to same supply by jumpers
Technical Specifications
Input signal voltage:20 VDC-28VDC, Typical voltage is 24VDC
Max. input current:25 mA @24VDC
Max. output voltage:65 VDC
Min.output voltage:2.0 VDC
Max. load per output point:50 mA
Continuous power dissipation at (or below) 25°C free-air temperature: 200mW
Input to output electrical isolation: 3.55 KV
Max. Voltage drop in output voltage: 0.5 V @ 5mA load
Resistance, input to output: 100 GΩ
Switch ON delay: 5µS
Switch OFF delay: 5µS
Applications
a) For connecting invertersServo drives to PLC output modules.
b) To convert NPN sensor to PNP sensor and vice versa.
c) For isolating field inputs from PLC input module.
d) To connect incremental encoder (With Incompatible signal level) to control system.
e) In all applications where we need very fast and require isolation between driver and driven circuits.
f) For connecting one signal level (5-230 VDC)to another signal level (2-65 VDC)with isolation.
g) To make field inputs noise free.

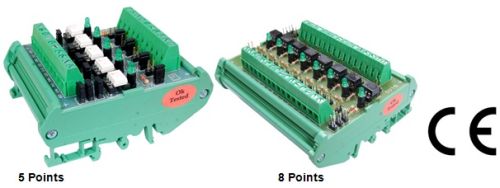

Available in 4points5 points6 points8 points variants.
Opto. boards with input signal other than 24VDC can be supplied on demand.
High speed switching 2µS possible on demand.
StandardApprovals
CE Certified
PCB:IEC61373
Terminals:ULCE
Optoisolator:UL
Profile & end plates:CE
