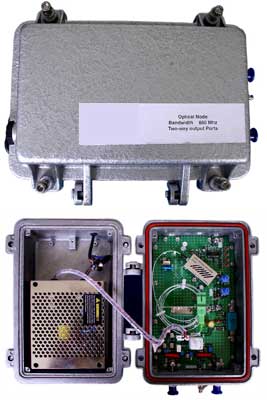

Optical Node-1100

Listing ID #46412

Optical Node WT-1100 Features
Two two-way output ports.
Return path transmitter module plug in (optional)
Input Optical Receiver Pin Type /Module Type (Optional)
Bandwidth 5- 860 Mhz
Plug-in two-way filters, band split frequency (Optional)
Output level and slope range continuously adjustable.
LED indication for -5 dbm, -2 dbm, 0dm & +2dbm
Input Optical power measurement
Operating Wave length 1290
Flatness +0.50db
Output level 100 db (Tested at -1 db m)
Slope range 0-6 db
Gain control 0-10 db
Fiber type single mode (9.125 um)
FC / Apc sc/ Apl fiber connector
Input optical return loss > 45 db
