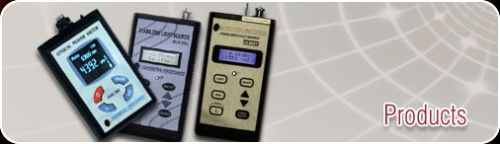

Optical Light Source

Listing ID #3914683

  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

Optical light source is available in different models with varying specifications that meets the requirement of different users. The laser source is available either with single or dual laser....
View More Details
Send Enquiry

Company Information

  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

Optical light source is available in different models with varying specifications that meets the requirement of different users. The laser source is available either with single or dual laser source operating at 1310 & 1550 nm wavelengths. All the models are handheld units making it very handy for usage.
Some of these products are type approved by TSEC, Govt of India.
Features
Users can select the model based on single or dual wavelengths of operation.
Alpha-numeric display with backlight or Organic color graphical display.
Keypad with soft touch keys for smoother operation and long life.
Can be operated with internal battery or ac power supply.
The battery can be charged with adapter connected to instrument or with USB port.
The output power can be varied over a range of 6 dB or fixed.
The output power of the laser diode can be displayed in dBm or mW.
The laser output can be modulated at three different frequencies.
Auto Off of the unit for power saving and long battery life.
The instrument is provided with soft start for slow turn On & Off of the laser diode.
Wavelength identification with the corresponding optical power meter.
A rubber holster is provided to the instruments for additional protection against falls.

Applications
Optical systems & device evaluation
OFC installation & maintenance
OEM applications
R&D applications




Specifications
Parameter SLS 501 ULS 501 DLS 501 DLS 502 DLS 503
Wavelength (nm) 1310 1550 1310 & 1550 1310 & 1550 1310 & 1550
Output power (dBm) -9.0 to -3.0 -6.0 to 0.0 -9.0 to -3.0 @ 1310
-6.0 to 0.0 @ 1550
- 7.0 - 7.0
Laser Type FP DFB FP / DFB FP / DFB FP / DFB
Operation Mode CW and Internal Modulation
Power stability (dB) ± 0.05 dB for 1 hr and  ± 0.25 dB for 24 hrs
Display Alpha Numeric LCD Graphical color OLED 7-segment
Fiber Connectors FC-PC Universal connector with FC-PC, SC-PC & ST-PC
Power supply Rechargeable Batteries along with adapter
TSEC approval Yes Yes No No No
