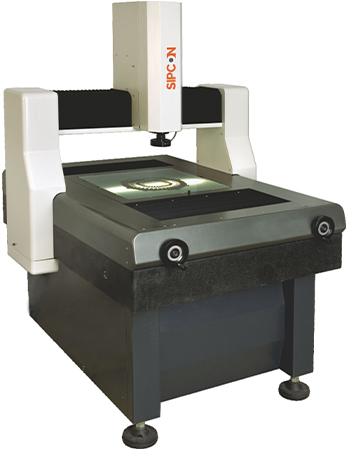

Optical Coordinate Measuring Machines

Listing ID #6219936

Get Latest Price

FeaturesThread less worktable , Zero Backlash
Magnification range28X-180X
Measuring range400x400x200mm to 1000x1200x300mm
Supply Type Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

View More Details

Product Details

MODEL NO.	SVI-OCMM-442	SVI-OCMM-662	SVI-OCMM-10122
Measuring Rang	400 X 450 X 200	600 X 600 X 200	1000 X 1200 X 200
Linear Accuracy UI	3+L/200 um	3+L/200 um	5+L/200 um
U2	5+L/150 um	5+L/150 um	6+L/150 um
Magnification	Optical Magnification 0.7X - 4.5X & Magnification on Monitor 35X - 225X
Software	Ik 5000
Resolution	0.005 / 0.001 / 0.0005/ 0.0001mm
Repeatability	± (0.003mm)
Transmission	Linear Guide way + Rolling Drive nut		Air Bearing
Vision	1/3" High Resolution CCD Camera)
Video Edge Detection	Standard
Optional Hardware	PC +19' TFT Monitor
Illumination Surface	Fibre Optic/LED
Illumination Contour	Halogen Lamp/LED
Operation	Manual with Quick Release Knob / CNC
Base Platform & Column	Granite DIN 876 Grade 0
Power Supply	220-240 V ± 5%, 50/60 Hz
Motion Control through Joystick	Optional
Programmable Light Control	Optional
Touch Probe	Optional
Non-Linear Error Correction	Optional
Platform Load Capacity	20Kgs Optionally upto 50 kgs
Machine Dimensions	1500 X 1150 X 1650 mm	1800 X 1700 X 1700 mm	2000 X 2200 X 1800 mm

Company Details

Sipcon Instrument Industries, established in 1971, is India's largest manufacturer of Vision Measuring Systems, Profile Projectors, Coordinate Measuring Machines and Automatic Optical Inspection Systems.
Our aim is to transform innovative concepts into market ready products. We focus intensely on our client's requirements, continuously develop and improve existing technologies and orient ourselves towards new trends. This enables us to guarantee the highest level of manufacturing processes and convincing product solutions.
Our technical capability, R&D expertise and after sales support is unmatched in our industry and uniquely position us to compete anywhere in the world.
