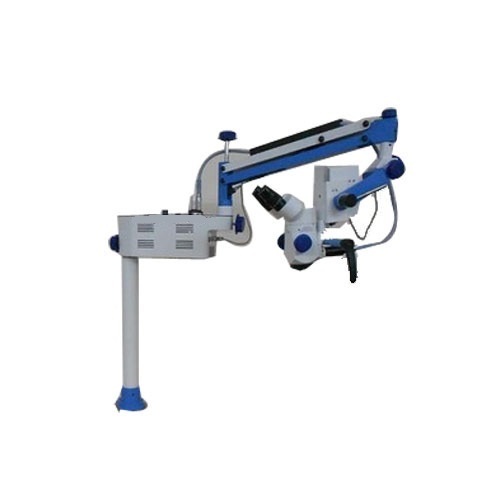

OPERATING MICROSCOPE TABLE MODEL

Operating microscope Table Model with Optical Head Eye Pieces 12.5 x wide field Diopter Adjustment From +6 to -6 Inclination to Vertical 450 off Vertical Interpupillary Distance Adjustable from 52 mm to 75 mm by knob Working Distance 175mm or 200mm Magnification – Zoom head 0.4x 0.6x, 1.0x,1.6x, 2.5x Feild of View (with 175mm Objective) 56, 36, 22, 14, 9 mm Diameter (with 200mm Objective) 80, 51, 31, 19, 12 mm Diameter Total Magnification: (with 175mm Objectives) 5, 7, 11, 18, 28 (with 200mm Objectives) 3, 5, 8, 13, 20 Fine Focusing 50 mm Manually adjustable Illumination System Illumination Standard 60 Illumination coupled with -20 Illumination for bright Red Reflex Maximum Intensity 75,000 Lux Brightness Continuously Variable Filters Built in Heat Absorbing Filter and UV, GREEN & BLUE Filter with Switchable Facility Light Transmission By Fiber Optic Cable Light Source Twin outlet 15V/ 150W Halogen Lamp with Cold Reflector Microscope Stand Arms Counter balanced Spring Arms Horizontal Length of Arms 850 mm Vertical Height Minimum 905 mm Maximum 1465 mm Vertical Height adjustment 560 mm Rotation of Arm 320 degree, table stand which allow the fixing with the arrangment of table clamp.
