Opacity Analyzer

Listing ID #4271582

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

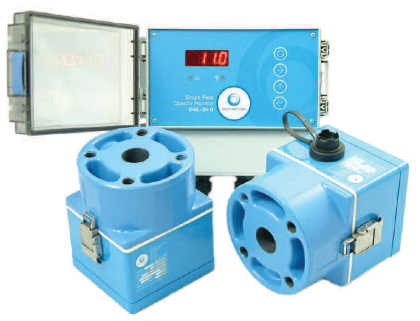

The DSL-340 Dust Monitor uses the innovative Dynamic Detection Principle (DDP) to measure dust, smoke and particulate concentration present in an exhaust gas flow in a duct, stack or flue. A light beam emitted from the Transceiver (TRX) passes across the duct, stack or flue to a Reflector, which returns the light beam to the TRX. Particles moving through the beam will cause fluctuations in the intensity of light received by the TRX. When calibrated against standard reference measurements, the magnitude of the signal variation relates directly to the dust, smoke and particulate concentration.

Features

• In-situ measurement directly in exhaust gas flow
• Innovative Dynamic Detection Principle, (DDP), measurement technique
• Measurement reading as mg/m3 (when calibrated against
standard reference measurements)
• Choice of interface options enabling easy integration into plant control system
• Free utility software for PC based setup, control and data logging
• Optional Operator Interface with different mounting configurations
• IP65 rated external enclosure

Company Details

“A Leading manufacturer of Steam And Water Analysis System , Gas Sampling Systems, Chillers, Sample coolers, Pressure reducers, Shelters, Rectifier Cooling Systems , Turn-key Automation projects, & relevant accessories originally designed & selected throughout our 20 years of working experience in various instrumentation industries and latest know-how in this field.
These systems are designed in accordance with ASME PTC 19.11, ASME SEC VIII, Div. The sampling system (Wet Panel) designed by us does not require any power or external energy to operate. Due to this feature the maximum maintenance problems are eliminated.
The equipments manufactured by us are
Steam & Water Analysis system along with the analysers (SWAS),
Gas Sampling Systems, Steam Tracing Systems
Cooling Systems ( Chillers, Rectifier Cooling systems)
Sample coolers (shell & Tube Tyep & Coil - In-Coil Type)
High pressure sample filters,
Pressure Reducers (Diaphragm type, Piston Type, Rod-In-Tube Type)
Back pressure regulators,
Cation Columns (Resin Columns),
Pressure reducing stations & De-Superheating Stations, (PRS & PRDSH)
Automatic Blowdown Control Systems,
Sampling Probes, Multi-Valve Manifolds (5 valve, 3 valve, 2 valve,), High Pressure valves & Double Compression ferrule fittings (Steamlok)
Sample Sequencers (Micro-Processor based for Silica Analysers & Sodium Analysers)
Local Instrument Racks & Enclosures (LIE/LIR's)
