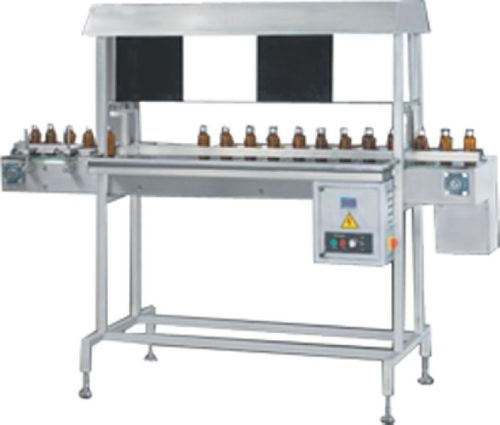

Online Vial & Bottle Inspection Machine is uses for inspecting liquid vials & bottles. Online Vial & Bottle Inspection Machine is having application in Pharmaceutical, Biotech & Veterinary industry. This equipment consist three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. Inspection table have stainless steel structure with moving stainless steel slat chain. Structure made out of stainless steel square pipe & supported on adjustable bolts. Machine complies as per GMP standards. |
 | ||
 | ||
Salient Features | ||
 | ||
 | ||
PVC black & white board as per GMP norms. | ||
 | ||
SS elegantly matt finishing. | ||
 | ||
Variable AC frequency variable drive for speed adjustment. | ||
 | ||
Direct gear drive. | ||
 | ||
Length can be made as per customer’s requirement. | ||
 | ||
UHMW self lubrication guide below chain. | ||
 | ||
Adjustable height of conveyor belt, to align with other machine of the line. | ||
 | ||
Self-alignment bearing for easy maintenance. | ||
 | ||
Rigid Vibration free Construction for trouble free performance. |
 | ||
Process Operation | ||
 | ||
 | ||
The central conveyor belt brings the bottle from the capping machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts & further on the side tables for operators sitting on either side of the table. The operators in turn pick up the bottles & visually inspect the bottles in the alternate white & black background to check for any particles in the liquid filled, sealed & breakage of bottle. After inspection the bottles are placed in the central track, which is transfer for labeling. |
 |
Production Output | 100 Containers/Minute |
Input Specification | - |
Container Diameter: | 22mm to 100mm |
Container Height: | 58mm to 240mm |
Number of Operators | Four (2x2) |
Power Specification | 0.5 H.P. |
Electrical Characteristics | 220 Volts, Single phase, 50 hertz |
Conveyor Height | 850mm to 900mm adjustable |
Overall Dimension | 1850mm (L) x 700mm (W) x 1550mm (L) |
