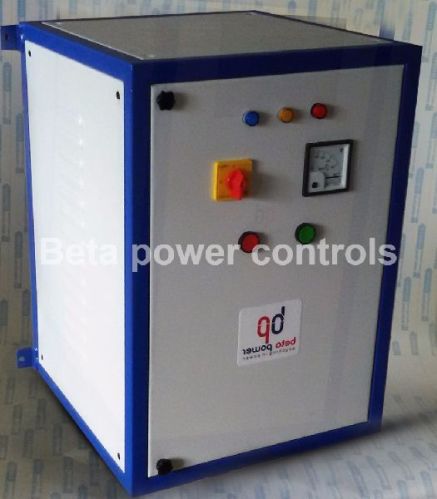

Contact SupplierWe hold immense expertise in catering to the variegated requirements of the customers by providing them with a broad array of Online UPS. Designed using quality raw material, advent tools and latest technology, the range offers excellent voltage fluctuation and malfunctioning. Widely used in diverse industrial and commercial applications, the range is offered in varied designs, sizes and colors, which can also be customized as per the requirements of the customers.
Beta Power have rich experience in providing high quality energy supply in many fields such as IT Applications, Industries, Infrastructures and Health care Sectors. The overall load is shared by the solar powered MPPT and the utility throughout electric powered existence between battery and solar power during mains power failure. It can also be configured to work only on Solar and Grid without battery bank with Solar as the primary source. We possess great knowledge in catering to the variegated demands of the clients by offering them with an extensive variety of Online UPS . Designed by making use of top quality raw material, advent tools and modern technology , the range offers excellent voltage fluctuation and malfunctioning . Often used in wide-ranging industrial and commercial applications , with varied designs , sizes and colors , which can also be customized as per the requirements of the customers .
RATING KVA | 1KVA TO 200 KVA |
CONVERTER |
|
Input voltage | 230 V AC Single Phase 1Kva to 5kva 400v Three phase for 6Kva and above |
Voltage Rating | -30%, +25% |
Frequency Range | 46 HZ - 54 HZ |
|
|
INVERTER |
|
Output | Single phase / two phase / three phase |
Voltage | 230v / 400v |
Voltage Regulation | +/-2% |
Frequency | 50HZ +/- 0.05% |
Technology | High frequency PWM using IGBT / MOSFET |
Waveform | Pure Sinewave |
Harmonic Distortion | Less than 2% for Linear load, Less than 3% for Non Linear load |
Transient Variation | Less than 5v for 100% Step Load Change |
Transient Recovery | Less than 5m Seconds step load change |
Rate Power Factor | 0.80 |
Over Load Capacity | 120% for 10 Minutes, 150% for 60 Secs. |
Bypass Overload capacity | 1.5 Times of Nominal Current for 1 Minute |
Cooling | Forced Air |
Efficiency | Better than 90% |
Transfer Time | Nil |
Current Crest Factor | 4:1 |
|
|
BATTERY |
|
Type | Lead Acid Automative / Tubular / SMF |
Backup Time | 15 Min to 4 Hours |
DC Voltage | 48v to 600v |
Battery Capacity | Depends upon Backup time |
Charger | Automatic Boost Cum Float Charger |
|
|
METERS |
|
LCD Display | Programmable 1x16 Character Backlit LCD |
Status | Input & Output Voltage, Output frequency Load Level, Battery Level, Battery low / Ver Load / Over Voltage Trip |
LED Indication | Mains On / Inverter On / Battery Low / Over Load |
Audio Alarm | Warning Buzzer for Battery Low / Over Load / Output Over Voltage |
Protection | Output Over Voltage Trip, Output Over Load, Short Circuit Trip, Battery Low Trip, Battery Over Charge |
|
|
ENVIRONMENTAL RATINGS |
|
Operating Temperature | 0-55 C |
Operating Humidity | 20-90% (Non- Condensing) |
Noise Level | Less than 50 Db |
Software Compatibility | RS 232 Supports Windows 95 / 98 / NT / 2000 / XP, NOVELL & LINUX |
