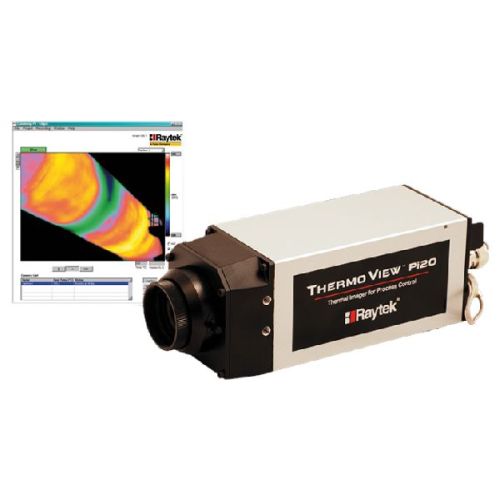

ThermoView Pi20 is a rugged thermal imaging camera designed for industrial process control applications. The camera is designed with an IP54 rating. ThermoView Pi20 cameras are offered in two temperature ranges: -40ºC to 500°C (-40ºF to 932ºF) and 200ºC to 2000°C (392ºF to 3632ºF). For each temperature range, three lens options are available: 21.7° x 16°, 30° x 22° or 45.2º x 33.7º. ThermoView Pi20 provides easy networking over long distances using the standard Ethernet interface. This interface allows for the PC operating the DataTemp Pi (DTPi) software to be located far away. The Ethernet interface transmits up to 30 frames per second of imaging data and also allows for camera control. For long Ethernet cable runs beyond 90m (300ft), additional fiber optic Ethernet accessories are available.A full complement of hardware accessories includes:
High temperature and outdoor enclosures: To meet specifications for the demanding environments Raytek® products are typically installed into, an IP67 (NEMA 4)  rated enclosure is available with integrated cooling and air purge options. Integrated Junction Box: Allows I/O modules.
