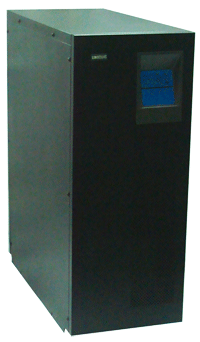

Contact SupplierTransformer Based UNIQUE Pure Sine Wave UPS with AVR:
Â
UNIQUE LPS series UPS integrated with latest on-line and communication technology, giving a perfect power solution for your restrict requirements. CPU control and PWM technology, making our UPS a reliable pure sine wave power hub, suitable for all type of inductive/ resistive or complex loading. Higher efficiency and better protection , you can control the UPS by computer interface or SNMP adaptor.
And more important is LPS series UPS has AVR inside which works in wider input range and with higher precision.
CPU control :
CPU control, built-in intelligent software offers high precision output.
PWM technology, Pure Sine Wave output :
Pure sine wave output, suitable for all types of loading includes resistive load, inductive load, complex load…
Sensitive short circuit protection :
When short circuit happens, UPS will shut down the inverter and giving warning.
Sensitive intelligent overload protection :
On battery mode, overload Less than 120%, UPS will give warning (beeping) for 10 seconds, after 10 seconds, UPS will switch off inverter to avoid damage to the UPS; on Normal mode, overload will activate the beeping warning, to educate the user to reducing the load with in its rated capacity.
Optional LED or LCD Human-Machine Interface :
Simplified LED display or advanced LCD display. For LCD display, input/output voltage and frequency, output current can be showed on the screen.
Shorter transfer time :
Home UPS, inverter IPS Technical Specification | ||||||||
Model | NC3411 | NC5011 | NC7011 | NC7022 | NC1522 | NC2023 | ||
Capacity | 350W | 500W | 700W | 1KW | 1.5KW | 2KW | ||
Voltage range | 90v - 280v AC | |||||||
Input | Frequency range | 50Hz ± 5Hz | ||||||
AVR | Four Steps AVR, 220V ± 10% | |||||||
Output | Inversion Voltage | 220V ± 3% | ||||||
Inversion Frequency | 50HZ ± 2% | |||||||
DC Voltage | 12V 24V 48V | |||||||
O/P Waveform | sine wave | |||||||
THD | ≤3% | |||||||
Transfer time | ≤4ms Automatic Transfer | |||||||
Recharge Current | 10-15 A | 15- 25A | ||||||
Transfer Efficiency | 85% | 90-96% | ||||||
Protection | Protection against Short-circuit, Overload | |||||||
Communication Ports | RS 232 | |||||||
Unit Size (mm) | 372*122*195 | 397*145*215 | 460*192*335 | |||||
N.W (KG) | 6.8 | 7.8 | 10.8 | 12 | 20.5 | 23.5 | ||
K.W (KG) | 7.8 | 9.4 | 12.3 | 13.5 | 22.5 | 25.5 | ||
Shipping Size (mm) | 385*442*303 | 400*293*218 | 570*297*442 | |||||
2Pcs | 2Pcs | 1Pcs | ||||||
Home UPS, inverter IPS Technical Specification | ||||||||
Model | NC3023 | NC3523 | NC4023 | NC7024 | NC1034 | NC1535 | ||
Capacity | 3KW | 3.5KW | 4KW | 7KW | 10KW | 15K | ||
Voltage range | 90v - 280v AC | |||||||
Input | Frequency range | 50Hz ± 5Hz | ||||||
AVR | Four Steps AVR, 220V ± 10% Without 220V ±10% | |||||||
Output | Inversion Voltage | 220V ± 3% | ||||||
Inversion Frequency | 50Hz ± 2% | |||||||
DC Voltage | 48V 96V 240V | |||||||
O/P Waveform | sine wave | |||||||
THD | ≤3% | |||||||
Transfer time | ≤4ms Automatic Transfer | |||||||
Recharge Current | 15A-25 A | 10A | ||||||
Transfer Efficiency | 90 - 96% | |||||||
Protection | Protection against Short-circuit, Overload | |||||||
Communication Ports | Rs. 232 | |||||||
Unit Size (mm) | 460*192*335 | 555*360*720 | ||||||
N.W (KG) | 29.3 | 34.2 | 38.5 | 56.5 | 78.5 | 108.5 | ||
K.W (KG) | 31.5 | 36.5 | 40.5 | 60.7 | 82.8 | 112.8 | ||
Shipping Size (mm) | 570*297*442 | 720*450*865 |
