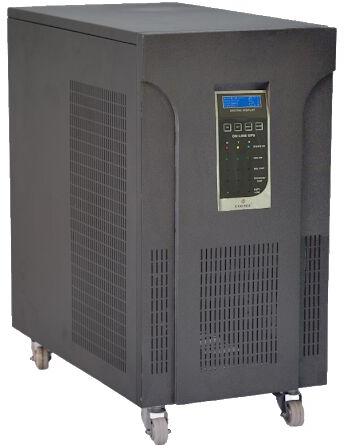

On-line ups system

On-line ups system

Listing ID #3914912

Get Latest Price
  • Frequency50Hz ±5Hz
  • Voltage225V / 415 V AC
  • CAPACITY1KVA – 100 KVA (1Ph – 1Ph) (3Ph – 1Ph) (3Ph – 3Ph)
  • TECHNOLOGYAdvance PWM with high Frequency Switching DSP based Double conversion, Isolated output
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

Cosmic Micro Systems Private Limited verified-icon
Mahalakshmipuram, Bangalore, Karnataka
View Number
  • Member Since 7 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • CAPACITY 1KVA – 100 KVA (1Ph – 1Ph) (3Ph – 1Ph) (3Ph – 3Ph)
  • Frequency 50Hz ±0.1Hz
  • Frequency 50Hz ±5Hz
  • Voltage 160v – 280V AC
  • TECHNOLOGY Advance PWM with high Frequency Switching DSP based Double conversion, Isolated output
  • Voltage 225V / 415 V AC

COSMIC ONLINE UPS provides an independent, no break source of clean, stable, transient free uninterrupted power supply with output neutral bonded to ground, protect critical loads against power line disturbances and loss of commercial power. The UPS given an accurately controlled sine wave AC output without any line disturbances.

The Cosmic ONLINE UPS system comprises of a rectifier, an auto float cum boost charger, battery backed inverter with under volt, over volt short-circuit protection along with a high degree of Input to Output isolation. Amplification stage has IGBT technology for pure sine wave output.

It is ideal for centralized applications in any industry to protect all the machineries Equipments which are under complete voltage control.



Regulation 225V / 415V ±1%
Wave Form Pure Sine Wave
Power Factor 0.8 Lag
Distortion Less then 2%
Inverter By Using IGBT Devices
Load Crest Factor Upto 3:1
Noise Level Less then 40db
Withstanding Capacity 150% Over Load for 60secs
Type of Cooling Forced Air Cooling
Type of Charging Boost Cum Trickle ( by using IGBT Devices)
Efficiency Better than 95% on Inverter, Above 92% as overall
TRANSFER TIME Nill
PROTECTON
Input Over Voltage / Under Voltage / Spikes / Surges
Battery Over Charge / Low Voltage (Deep Discharge)
Output Over Voltage / Under Voltage / Over load / Short Circuit
INDICATIONS Mains on / Inv. On / Inv. Trip / Batt.Low / Inv. U/V – O/V Trip
ALARMS Battery Low / Mains Failure
LCD DISPLAYS Input Volt / Output Volt / Output Current / Output Freq
Battery Volt / Battery Current
BATTERY
Type Lead Acid – Inverter / Tubular / SMF
Battery Voltage 48V – 360V
Recharging Time 8 to 10 Hrs
Back Up Provisions 10 Min. to 24 Hrs.
OPTIONAL FEATURES Static Switch / Hot Standby / SNMP


Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

Cosmic Micro Systems Pvt. Ltd., an ISO9001:2015 certified company was established in 1994 by first generation entrepreneur Shankar Nagali. With a successful career, he has always balanced achievement in business with a dedication to giving. He started with a vision to assist in addressing the ever demanding energy needs in India; whether it's to light up a tiny home in a remote village or to provide uninterrupted electricity back-up for an urban high end institution in a metro city or to provide a clean and protected power for a sophisticated medical equipment.
Today the product portfolio spans from Power Conditioning and Back-up equipment like Home UPS, Online UPS, Servo stabilizers and Frequency Converters to Solar Inverters, as well as Water treatment and conditioning solutions like Water Purification, Softening and De-mineralization. Having realized his dream, Shankar has joined hands with a group of highly successful and yet another first generation entrepreneurs to take Cosmic to next level.
