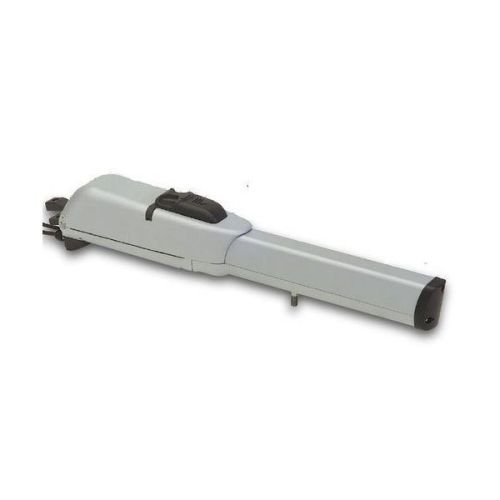

OLEO PLUS series hydraulic actuators designed for industrial swing gates with intensive use. Actuator is more smooth and reliable due to hydraulic mechanism to provide stable gate operations .
Features| MODEL | CODE | WEIGHT | GATE LENGTH | FREQUENCY | IP RATING |
|---|---|---|---|---|---|
| OLEO PLUS R | 18373 | 700 Kg | 4 m | 90 % | IP 54 |
| OLEO PLUS IR | 18374 | 700 Kg | 4 m | 90 % | IP 54 |
| OLEO PLUS R | 18375 | 700 Kg | 6 m | 90 % | IP 54 |
| OLEO PLUS IR | 18376 | 700 Kg | 6 m | 90 % | IP 54 |
| Model | OLEO PLUS R | OLEO PLUS IR | OLEO PLUS R | OLEO PLUS IR |
|---|---|---|---|---|
| Power Supply | 110-230 V±10 % , 50Hz ± 10% | 110-230 V±10 % , 50Hz ± 10% | 110-230 V±10 % , 50Hz ± 10% | 110-230 V±10 % , 50Hz ± 10% |
| Current | 1 A | 1 A | 1 A | 1 A |
| Power Consumption | 23O W | 230 W | 23O W | 230 W |
| Maximum Leaf Length | 4 m | 4 m | 6 m | 6 m |
| Maximum Leaf Weigth | 700 Kg | 700 Kg | 700 Kg | 700 Kg |
| Maximum Travel | 265 mm | 265 mm | 400 mm | 400 mm |
| Thrust | 7000 N | 7000 N | 7000 N | 7000 N |
| IP Rating | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temperature | -30°C to 80°C | -30°C to 80°C | -30°C to 80°C | -30°C to 80°C |
| Net Weight: | 10 Kg | 10 Kg | 10 Kg | 10 Kg |
