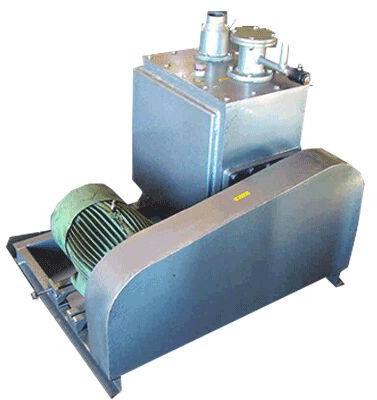

Oil Seal Vacuum Pump

We manufacture high vacuum pumps that are of oil-immersed, rotary vane type pumps. The rotor, with two spring loaded vanes, is mounted eccentric in the stator body, As the rotor, rotated the vanes sweep the crescent shape valve which prevents back flow of air. Manufactured from graded material, all moving parts are precisely machined, ground and assembled with close tolerances. This results in increased efficiency and long trouble free operating life.

Capacity:-50 liters to 35000 liters

It is electromagnetic solenoid type which admits air into the system as soon as the power supply fails. This prevents back flow of oil to the the system. Air Ballast: This a vent pipe introducing air before actual compressions which eliminated condensation of the sucked vapor. There by avoiding contamination of oil.

It is rubber diaphragm type spring loaded valve, which prevents back-flow of oil to the system as soon as pump stops. These can not be used to hold the vacuum in the system for longer period.

Moisture Trap Inlet Dust Filter Vacuum Gauge with Regulator Trolley for small Pumps Use oil: ENCLO-68 (H.P) SAE-30 or equivalent, vacuum Oil. Model LM-500 I and above, are provided with water cooling jacket.

Dehydration and filtration processes.,Distillation,Exhausting Electronic Tubes, GLS Lamps, Mercury vapor,Lamps and Tubes,Vacuum Metallurgy,Vacuum sublimation,Vacuum impregnation,Thin film coating,Refrigerator and air conditioner servicing,reeze drying of foods.
