Oil Production Machine

Listing ID #6091218

Get Latest Price

MOQ 1 piece
Weight5200 Kgs With Long Kettle,6500 Kgs With Three Stage Round Kettle
Crushing Capacity20 – 25 Ton in 24 Hours
ModelGOYUM 240
Chamber SizeFeed End: Dia 9" x 24" Long, Discharge End: Size: Dia 7" x 36" Long
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Weight 5200 Kgs With Long Kettle,6500 Kgs With Three Stage Round Kettle
Model GOYUM 240
Crushing Capacity 20 – 25 Ton in 24 Hours
Chamber Size Feed End: Dia 9" x 24" Long, Discharge End: Size: Dia 7" x 36" Long
Expeller Motor 3 Phase, 75 HP, 960 RPM
Kettle Motor 3 Phase, 5 HP, 1440 RPM

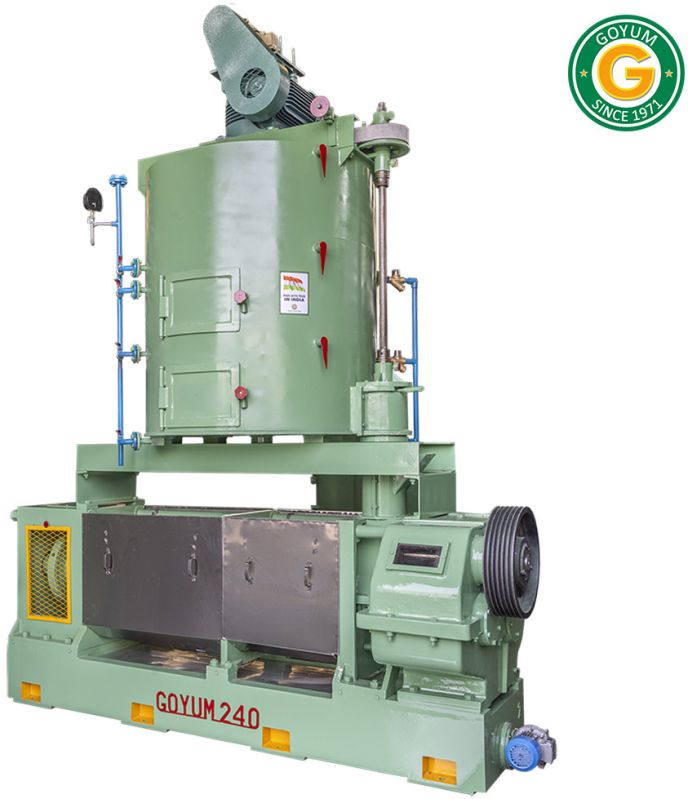

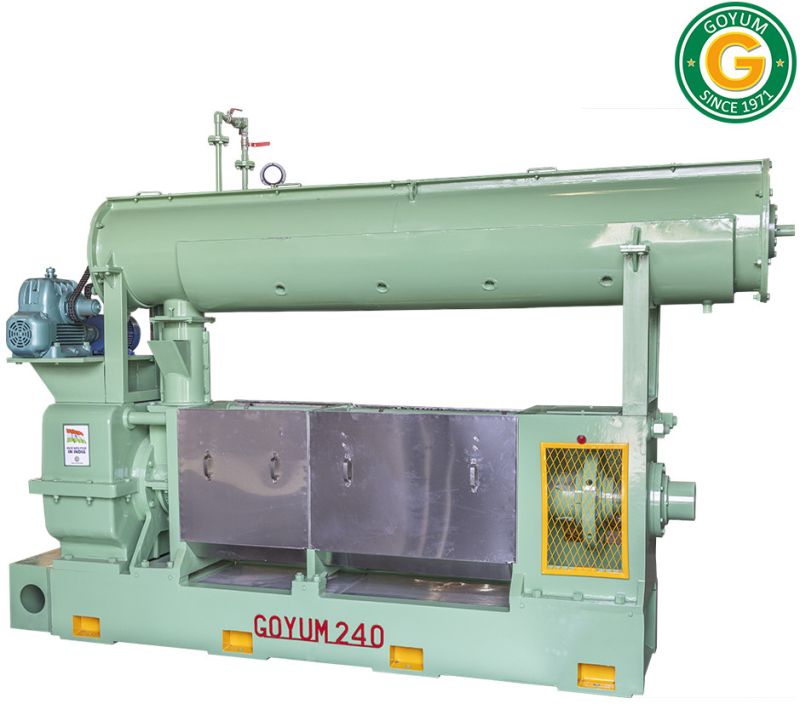

GOYUM 240 Oil Production Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

This Oil Extraction Machine comes with Round Kettle / Cooker for Export Market.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 24" Long, Discharge End: - Size: Ø 7" x 36" Long
Worm Assembly	Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Round Kettle	3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement)
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Technical Specification

Model	Capacity	Motor Power	Length	Breadth	Height
GOYUM 240	22 – 25 TPD*	3 Phase 75 HP for Expeller 3 Phase 5 HP for Kettle	10.13 ft	3.70 ft	7.60 ft

Additional Information

Port of Dispatch Mumbai / Mundra
Packaging Details Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)
Delivery Time 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation.

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Product Images

Company Details

GOYUM SCREW PRESS is a leading Project Engineering Company established in 1971 and now a prominent name in the Oilseed's Oil Extraction Plant, Edible & Non-Edible Oil Processing Plants & Allied Industry.
We are a Family Owned Company and Pioneer in Planning, Engineering, Manufacturing and Installation & Commissioning for Automatic Oil Mill Plant, Palm Kernel Oil Extraction Plant, Solvent Extraction Plant, Edible Oil Refinery Plant, Fish, Poultry & Animal Feed Plant, Oleo chemical Plant Flour Mill Plant, Rice Mill Machinery, EFB, MSW, Plastic & Industrial Shredder Used Engine Oil Re-Refining Plant, Waste Tyre Recycling Plant, Solar PV Solutions Water & Waste Water Treatment Plant, Cosmetic Plant, Food Processing Solutions on Turnkey Basis Worldwide.
Further, we also undertake the expansion of the existing plants with modern technologies.
We at GOYUM have a state-of-the-art manufacturing facilities spread in 27,000 Sq.m. covering production area for Fabrication, Welding, Machining, Assembly, Painting, Packaging, etc. In strive to deliver our valued customer best product, we keep on continuously improving our manufacturing system.
The plants offered by GOYUM are robust, flexible, reliable and efficient. These plants are based on the commercially proven technologies, which are not only energy efficient & environment friendly, but also cost effective.
We have supplied more than 750 projects on Turnkey basis which are running successfully in 6 Continents covering more than 60 countries.
The GOYUM is backed by a strong leadership, dedicated workforce and updated technology.

Nature of Business Manufacturer / Exporter / Supplier / Trader
Number of Employees 400 - 450
Year of Establishment 1971
