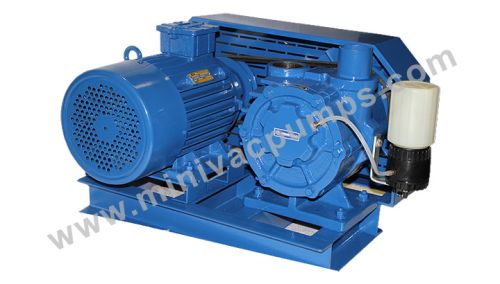

 Minivac VL Series vacuum pumps are oil lubricated vacuum pumps running on rotary vane technology.
 These pumps are specially designed to suit the needs of trolley, line & parlor milking application.
 VL -300 & VL-400 vacuum pumps have sump based lubrication system. Where the exhaust oil is recycled back to the system for circulation.
 VL-500 & above models are oil lubricated in which oil is used ones. Oil is feeded through drip lubrication or capillary oil feed bottles. Pumps can be supplied bares, with belt guard and vacuum tanks as well.
Model | Flow Rate @40Kpa |
Power Required (Hp) |
Pump Rpm | Drive Type |
---|---|---|---|---|
VL-300 | 250 | 1 | 1440 | Belt Driven |
VL-400 | 350 | 1.5 | 1440 | Belt Driven |
VL-500 | 500 | 2 | 1250 | Belt Driven |
VL-750 | 750 | 3 | 1100 | Belt Driven |
VL-1000 | 900 | 3 | 900 | Belt Driven |
VL-1500 | 1500 | 5 | 1100 | Belt Driven |
VL-2000 | 1850 | 7.5 | 1100 | Belt Driven |
VL-2300 | 2000 | 10 | 1100 | Belt Driven |
