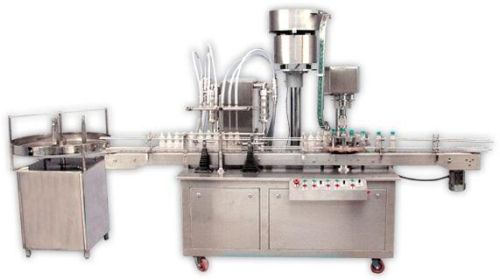

Contact SupplierThe filled containers moving on conveyor belt and fed into an in feed star wheel by in-feed-worm. While moving in feed star wheel , bottles pick up caps one by one from delivery chute. The descending rotary sealing one heads hold bottle's neck with desired pressure
Â
The sealing is done in a programmed roll-on-manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps.
Â
The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed containers are discharged by exist star wheel on conveyor.
Â
Â
Features
Output / Hour | 20 TO 40 Bottles ( Depending on bottle size ). |
---|---|
Electrical Motor | 1 HP / 440 VOLTS / 3 PHASE / 50 Hz ( Four wire ). |
Conveyor Height | 750 mm to 840 mm Adjustable. |
Container Size | 22 to 75 mm, maximum height 210 mm. |
Cap size | As per your sample. |
Overall Dimension | 1220mm( l ) * 750 mm( w )Approx. |
