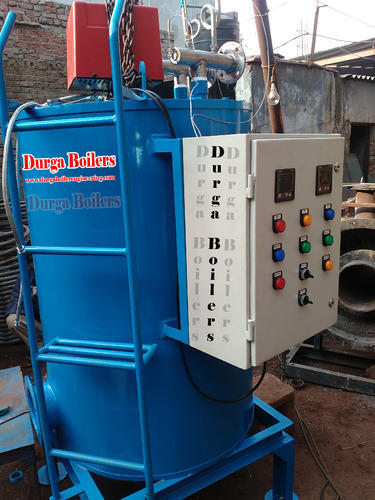

Description

· Multistart concentric coil (pressure part) Fabricated out of seamless pipe to ASTM 304 sch-40 forming three passes in close circuit design.
· outlet Shell of carbon steels enclosing the pressure part, complete the shells facilities.
· Double stage Pressure automatic burner
· One motorized fuel oil pump
· One oil filter
· Oil piping from filter to burner
· Sequence Controller-LOA-24, Fuel Pump or another Thermic Fluid Pump- Ksb or other,Motor-Cromption, Contractors-L & T or equipment, or equipment, Coil-Tata or Jindal Seamless

· One fuel oil pressure indicator at burner inlet.
· Two pressure indicator complete with isolating needle valves on each at the inlet and outlet of thermic fluid heater.
· One temperature indicator cum controller to indicate and control the burner at return the thermic fluid line.
· One temperature indicator cum controller at the outlet of the heater for safety cut of the burner.
· Light dependent resistor (photocell) to monitor the flame ignition transformer.
· Audio-alarms for abnormal operating conditions.
· Power coated, dust proof, prewired control panel housing electric isolator switch, contactor, sequence controller, temperature controllers, indicating lamps, fuses .

· Inlet and outlet flanges of the main unit.
· Inlet and outlet flanges of thermic fluid pump.
· Inlet of oil filter.
· Flue gas outlet flange on thermic fluid heater.
· Electrical terminal connecting on our control panel, circulating pump motor.
