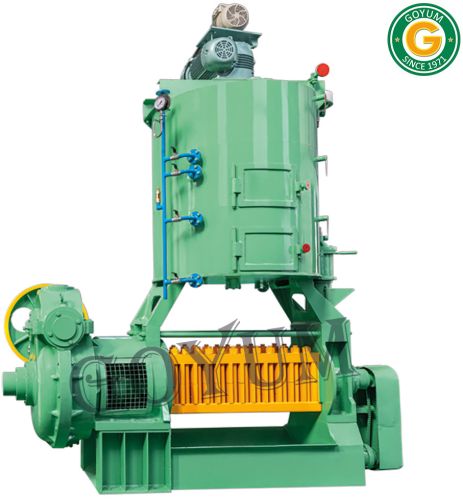

GOYUM Oil Expeller Machine, Operating Type : Semi Automatic

GOYUM Oil Expeller Machine, Operating Type : Semi Automatic

₹ 17.43 Lakh - ₹ 19.09 Lakh / piece

MOQ1 piece
Brand NameGOYUM
Operating TypeSemi Automatic
Country of OriginIndia
Weight4500 kgs
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

View Number

Member Since 15 Years
Nature of Business Manufacturer
GST No. 03AAVPG4261E1ZV

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
Operating TypeSemi Automatic
Brand NameGOYUM
Weight4500 kgs
Chamber SizeDia 6-1/2” X 36” Long, Dia 7” X 44” Long, Dia 6-1/2” X 07-1/2”X 45” Long
ModelGOYUM MK 4
Expeller Motor3 Phase, 50 HP, 1440 RPM
Dimension (LxBxH)8’8” x 4’6” x 9’
Kettle Motor3 Phase, 5 HP, 1440 RPM
Crushing Capacity12 – 15 Ton in 24 Hours

Oil Expeller Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.

Features:

Bodies	Material: Cast Iron
Gearbox	Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set
Chamber	Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: Ø6.1/2" X 36” Long, Ø7” X 44” Long, Ø6-1/2” X 07-1/2”X 45” Long.
Worm Assembly	Case Hardened with Cone Point
Main Worm Shaft	Can be drawn out without disturbing the Gearbox.
Cake Thickness	The Machine needs to be stopped for adjusting the Cake Thickness.
Kettle	Three Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories
Crammer Shaft	For Extra Cramming of the seed or cake in the feed body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Technical Specification

Model	Capacity	Motor Power	Length	Breadth	Height
GOYUM MK-IV	12 – 15 TPD*	3 Phase 40 HP for Expeller 3 Phase 5 HP for Kettle	8.6 ft	6.33 ft	9 ft

*(TPD stand for Ton Per Day (in 24 Hours) of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)

Additional Information

Payment Terms L/CT/T
Port of DispatchMumbai / Mundra
Packaging DetailsWrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)
Delivery Time15 – 20 days, but confirmed delivery time will be provided at the time of confirmation.
