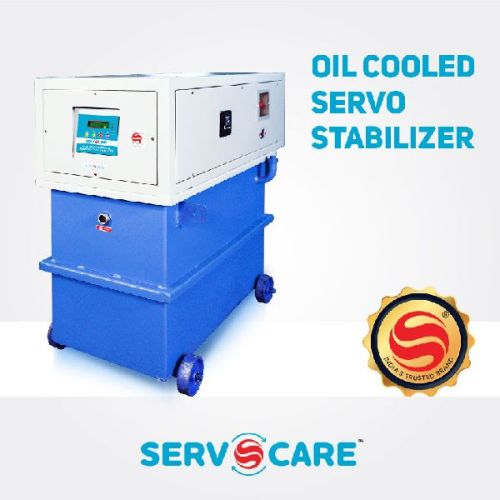

Oil Cooled Servo Stabilizer

Listing ID #4142437

Get Latest Price

MOQ 1 Piece(s)
Output Voltage Regulation + 1% (No Load)
Output Voltage Regulation + 1% (Full Load)
Short Circuit period & Percentage 300% for 250 Milli Sec.
Capacity RangeUpto 5000KVA 3 Ph
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Output Waveform True Reproduction of Input
Climate Conditions 90% Rh Max. Non Condensing at 350C
Output Voltage Adjustable 380 to 415V AC in 3 Ph
Output Voltage (3 Ph) 415V AC
System Unbalanced 4 wire: R Y B N
Input Voltage Range 300 - 460V / 340 - 480V / 360 - 460V AC 3 Ph
Mode of system Fully Automatic
System Construction As per IS : 9815 – 1994
Short Circuit period & Percentage 300% for 250 Milli Sec.
Overload Capacity 120%
Capacity Range Upto 5000KVA 3 Ph
Type of Cooling Natural air cooled up to 600 KVA
Output Voltage Regulation + 1% (Full Load)
Operating Frequency 47 to 53 Hz
Waveform Distortion Nil
Normal Operation Temperature 0° C to 45° C
Connections Star
Output Voltage Regulation + 1% (No Load)
Correction Rate 60 / 30 / 25V per Sec-3 Phase
Insulation Class B

Protections

Single Phasing Prevention
Output Electronic Over Load Protection
Phase Reversal Protection
Input Short Circuit Protection with MCB
Input Over Load Protection with MCB
Output Low Voltage Protection
Output High Voltage Protection
Audio Alarm for Protections

Indications

Mains Input on 3 LED Indications,
3ph output on indication
Phase Reversal indication
Over Load indication

Indications in LCD Display

Input High and Input low
Output on indication
Output high Cutoff and Output Low Cutoff

Programmable Parameters

Output voltage set ( 210-245V)
Output Low Voltage Cutoff
Output High Voltage Cutoff
Input Low on LCD Display
Input High on LCD Display
Sensitivity / Regulation
Over Load Cutoff
CT full scale

Programmable Control Timings

Over load Cutoff Time
Auto Restart Time
On & Off Delay Time

Programmable Controls

Display Scrolling - Auto / Manual
Start / Stop Buttons
Menu / Start / Stop / Reset / Log Button
Data Log: Last 100 fault events log with Date & Time stamp and works on FIFO basis.
Very Important For CSD
Analysis Problems

Features :

Quick response time 10 milli sec (half a cycle)
Very high efficiency above 98%
Excellent regulation as high as +/- 0.5%
“Micro controller” controlled system
Wide input range of operations & high speed of correction

Metering On LCD Display

3ph Input voltage ph to ph and ph to Neutral
3ph Output voltage ph to ph and ph to Neutral
System Frequency
Output Current on each ph
