Offset Plate Processors

Offset Plate Processors

Listing ID #3843748

Get Latest Price
  • Power requirements220V(single phase) 50/60hz 4kw (max)
  • Adjustable developing time10-60sec
  • Adjustable water consumption recirculation0-200ml
  • Maximum plate width880mm
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

Monotech Systems Limited
Naraina, Delhi
View Number
  • Member Since 15 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Maximum plate width 880mm
  • Adjustable brush speed 60r/min-120r/min
  • Adjustable temperature,developer 20-40°c
  • Plate thickness 0.15mm-0.40mm
  • Plate liner speed 380mm/min～2280mm/min
  • Tank volume, developer 30L
  • Adjustable water consumption recirculation 0-200ml
  • Power requirements 220V(single phase) 50/60hz 4kw (max)
  • Adjustable temperature,dryer 40-60°c
  • Dimensions(HxW) 2644mm x 1300mm
  • Net weight 260kg
  • Adjustable developing time 10-60sec

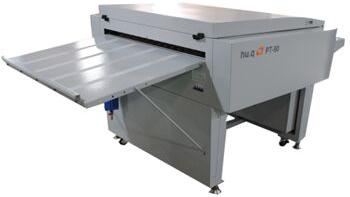

HQ-PT Series Plate Processor

The HQ-PT Series is a CTP plate processor designed to cater the needs of both domestic and international clients.





Use conventional plate



  • Immersed roller with stepless speed regulation, permits an automated work cycle
  • Enlarged LED screen, 6-switch operation, user-friendly interface
  • Advanced system: independent electric, software control system, programmable microprocessor control system, 3 washing options, developing fluid temperature control system that controls the developing temperature at precisely ±0.3°c
  • Developing fluid is replenished automatically according to usage, helps to maintain a longer fluid activity
  • Filters can be easily removed and cleaned or replaced in just moments
  • Large capacity developing tank, wide Φ54mm(Φ69mm), acid and alkaline resistant rubber shaft, ensures durability and stability of the plate
  • Compatible with shaft brushes of different hardness and material
  • Rewash function to obtain optimal layout cleanliness
  • Energy saving and cost reducing automatic sleep mode, automatic glue recycling system, and highly efficient hot air dryer system
  • Upgraded communication interface connects directly with CTP
  • Equipped with emergency switch and alert system to prevent malfunction by overheating, dry heating, and low fluid level
  • Easy maintenance: shaft, brush, circulation pumps are removable
