Contact SupplierWe are offering ce certified range of offline uv curing systems, which are available in different widths ranging from 4” to 72” and are also customized as per the needs of our clients. Our offline ultraviolet curing system is used for many printing methods such as offset, flexo, pad, screen and many more. They have the ability to print on non absorbent surfaces and have higher abrasion and chemical resistance. Therefore, we are recognized as the key off line uv curing systems manufacturer and supplier of india.

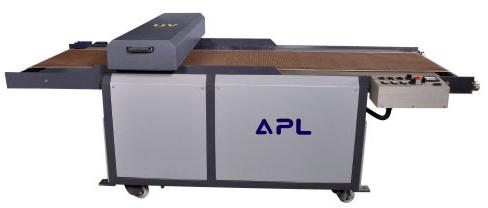

offline uv curing systems (pvc profile curing machine)
we offer ce certified offline uv curing systems, which are available in 4" to 72" width with the power range of 200w to 500 winch having lamp capacity of 1, 2, 3 lamps. We also design offline uv curing system as per customer specs and needs. Offline uv curing systems are used for drying inks and varnish coatedprinted by any media.
uv curing system involves cross chemical reaction when uv varnishink applied to object and passes through under uv light. It get cure instantly.
our systems are useful for various printing methods like screen, offset, rotogravure printing, flexo, dry offset, pad, roller coater and many more. Besides, our systems find extensive application in case of materials like metal, shoe, pvc profile, pcb, wood, glass, electronic items, automobiles, filters, plastic etc.
features:
ability to print on non-absorbent materials.
Use of solvent free inks or varnish. · immediate further processing.
Higher chemical and abrasion resistance.
specification :
uv lamp
it lamp high quality reflector housing
efficient cooling systems with high pressure blower
irradiator for uv lamp
wire mesh teflon coated conveyor belt
vacuum bed
digital indicating for rpm (speed) lamp hosing for lamp
our long-term success requires a total commitment to exceptional standards of performance and productivity, to working together effectively, and to a willingness to embrace new ideas and learn continuously. Our product range consists hot stamping machine, pneumatic fabric stretching clamp, manual fabric stretching clamp, aluminium tubular frame, drying racks, manual vacuum table with slide, uv control panel with halffull power system, american uv lamps, wood printing machines, metal printing machines, glass printing machines, vinyl printing machines, flex printing machines, uv offset attachment, duplex board printing machines, uv reflectors, pvc profile printing machine, printing machines for plastic bottles, printing machines for caps, printing machines pens, printing machines plastic containers, printing machines for round products, printing machines for filters, conventional dryer, manual round printing machine, flame treatment machine, flame treatment machines, flame treatment machine, round screen printing machine, mechanical flat screen printing machine, roll to roll screen printing & curing machine, semi auto flat screen printing machine, t shirt printing machines, ir curer heating systems, pneumatic pad printing machines.
uv. Process
uv. Curing systems is a cross chemical reaction when uv. Varnish, ink applied to object and it pass through under uv. Light. It get cure instantly. Uv. Curing systems are available in different sizes and power. It can process through sheet fed or web offset printing, screen printing, letter press, flexo, gravure, varnishing or roller coatings. It is suitable for paper (full & spot), pvc profiles, wood, metal, glass, vinyl, flex and so many other products.
Model | Curing Width | Max. Paper Size | Max. Speed (Per Minute) | UV Lamp Watts | IR. Lamp | Total Power Load | Dimensions (in mm) LW H |
---|---|---|---|---|---|---|---|
UV. 410 | 250mm | 300mm P.E. Tubes | 40mtrs. 2000 Tubes/H. | 1x4KW | Optional | 5KW | 900 x 500 x 800 |
UV. 315 | 375mm | 450mm | 30mtrs. | 1x4.5KW | Optional | 4KW | |
UV. 220 | 500mm | 575mm | 20mtrs. | 1x4KW | 2x2KW | 9.5KW | 2700 x 750 x 800 |
UV. 225 | 625mm | 700mm | 20mtrs. | 1x5KW | 2x2.5KW | 11.5KW | 2700 x 900 x 800 |
UV.2X225 | 625mm | 700mm | 40mtrs. | 2x5KW | 2x2.5KW | 17KW | 3000 x 900 x 800 |
UV. 230 | 750mm | 825mm | 20mtrs. | 1x6KW | 2x3KW | 13.5KW | 2700 x 1000 x 800 |
UV.2X230 | 750mm | 825mm | 40mtrs. | 2x6KW | 2x3KW | 20KW | 3000 x 1000 x 800 |
UV.240 | 1000mm | 1100mm | 20mtrs. | 1x8KW | 2x4KW | 18KW | 3600 x 1275 x 800 |
