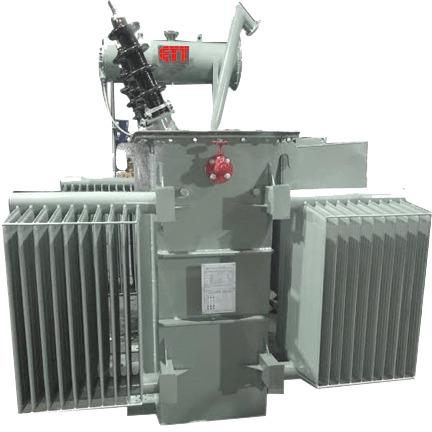

Electrotech Off-Load Distribution Transformer

Listing ID #6085083

5.65 Lakh - 10.55 Lakh / Piece

Get Latest Price

Winding MaterialCopper With Multiple Paper Covering
Brand NameElectrotech
No. of Phase3 Phases
Voltage Class3.3, 6.6, 11, 22, 33 KV
Supply Type Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India ( Madhya Pradesh only ) & All other countries

View More Details

Send Enquiry

Product Details

Winding Material Copper With Multiple Paper Covering
Brand Name Electrotech
Voltage Class 3.3, 6.6, 11, 22, 33 KV
Tap Range ±10 %, +5% in 2.5% Steps or as per Requirement of Customer.
Painting Epoxy or specified by customer
No. of Phase 3 Phases
Type Indoor/ Outdoor
Frequency 50/60 Hz
Vector Group Dyn11 or other specified by customer
Applicable Standards IS-1180:2014 (Part-1), IS-2026, IEC 60076

Details :

200 kva Off Load Transformer
315 kva Off Load Transformer
400 kva Off Load Transformer
500 kva Transformer in Gwalior
630 kva Off Load Transformer
750 kva Off Load Transformer
800 kva Off Load Transformer
1000 kva Off Load Transformer
1250 kva Off Load Transformer
1600 kva Off Load Transformer
2000 kva Off Load Transformer
2500 kva Off Load Transformer
3000 kva Off Load Transformer
3500 kva Off Load Transformer
4000 kva Off Load Transformer
4500 kva Off Load Transformer
5000 kva Off Load Transformer

Maximum Total Losses Upto 11 KV Class Transformers As Per BIS-1180:2014(Part-1)

Sr. No.	KVA	Impedance %	Maximum Total Loss (W) @ 75˚ Celsius
			LEVEL 1		LEVEL 2		LEVEL 3
			0.5	1	0.5	1	0.5	1
1	250	4.5	1050	3150	980	2930	920	2700
2	315	4.5	1100	3275	1025	3100	955	2750
3	400	4.5	1300	3875	1225	3450	1150	3330
4	500	4.5	1600	4750	1510	4300	1430	4100
5	630	4.5	2000	5855	1860	5300	1745	4850
6	800	5	2459	7300	2287	6402	2147	5837
7	1000	5	3000	9000	2790	7700	2620	7000
8	1250	5	3600	10750	3300	9200	3220	8400
9	1600	6.25	4500	13500	4200	11800	3970	11300
10	2000	6.25	5400	17000	5050	15000	4790	14100
11	2500	6.25	6500	20000	6150	18500	5900	17500

Note: For Transformer having voltage class 22 Kv then permissible total loss shall not exceed by 5% of total loss as per above table and for 33 Kv Class permissible total loss shall not exceed by 7.5% of total loss as per above table.

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Electro-Tech Transmission Pvt. Ltd was established in the year 2014 with simple beginnings, for not-so-simple power and transformer solutions. Being an ISO 9001:2015 & ISO 14001:2015 certified organization Electro-Tech focuses on delivering quality both in terms of products and services. Since quality is paramount to us, only the best quality parts and components are used for manufacturing transformers to improve the voltage, transfer the electric current from one point to another and other uses. We are a transformer manufacturer that produces a wide range of Power, Distribution, Special Duty & 3 Phase Transformers. We also provide transformer related services to our clients. We have catered to the needs of a diverse clientele in the past therefore, Electro-Tech has a rich market experience as a transformer.

Nature of Business Manufacturer / Exporter / Service Provider / Supplier / Retailer / Distributor / Importer / Trader
Number of Employees 300 - 350
Year of Establishment 2014
