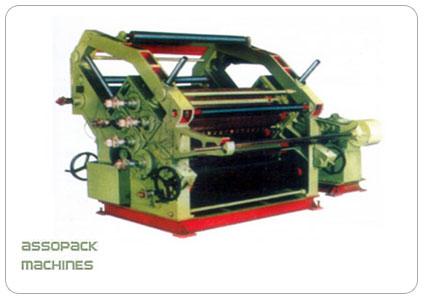

Contact SupplierThe machine is provided with double set of rolls of different flutes. Change of Roll Sets with Auto Feed (no need to change the rolls manually) Save time and labour & Increase Production The Fingerless Single Facer with two profiles. Fingerless Single Face Technology. Flute Change with Hydraulic System You can change flute accordingly. A fully Hydraulic system change the flute roller in this model taking only few minutes. Hydraulic lift the first cassette to one of two standby positions. The second cassette lower into the operating position where it automatically connect to the main drive
Technical Specifications :
Size in Inch/mm | 42" (1066) | 52" (1320) | 62" (1574) | 72" (1828) | 84" (2133) |
Power HP | 13 | 18 | 25 | 30 | 35 |
Output P/M | 60 mtr | 60 mtr | 60 mtr | 100 mtr | 100 mtr |
Weight in Kg's | 6000 | 6500 | 7000 | 8500 | 10 |
