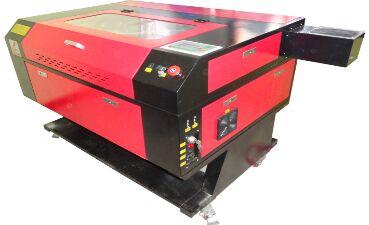

Contact SupplierOffering Non Metal Laser Cutting Machine. Non Metal Laser is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes, toys, and etc. Non metal laser is equipped with Texas 32 Bit DSP control system, there is a Flash memory on the mother board, you can download the work file to the machine via USB cable
MODEL : | CM1080 | CM1290 | CM1490 | CM1690 | CM160X |
Lase Tube | Water cooling Co2 sealed glass | ||||
Control System | 32 Bit DSP | ||||
Drive Type | Micro Stepping Stepper motor system | ||||
Laser Power | 60W/80W | 100W/150W/180W | |||
Work Area (cm) | 80x100 | 90x120 | 90x140 | 90x160 | 130x160 |
Image forms | Plt, Dxf, Bmp, Ai, Dst | ||||
Resolution | 250DPI | ||||
DoubleHead | Optional | ||||
PC Interface | USB2.0 and USB Disk | ||||
Red Dot Pointer | Optional | ||||
Accessories | Air assistant, Exhaust system, water cooling system | ||||
Auto tools Changer | No | 2 Heads | No | No | 8 tools |
Power | 110V or 220 - 240V / 50~60Hz | ||||
Warrenty | 12 Months | ||||
Machine Size WxDXH (cm) | 160x126x107 | 180x136x107 | 204x146x107 | 224x146x107 | 224x186x107 |
G.W.(Kg) | 450 | 480 | 500 | 550 | 600 |
