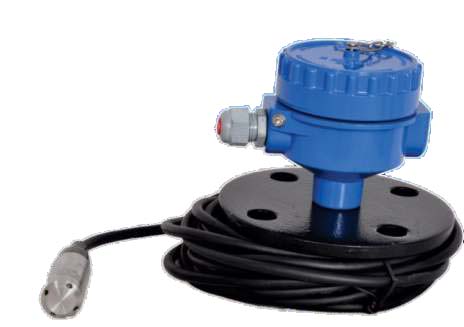

Metal Hydrostatic Level Transmitter, for Liquid Measuring

Listing ID #6620254

Get Latest Price

MOQ 1 Piece
Country of OriginIndia
MaterialMetal
ApplicationFor Liquid Measuring
ConditionNew
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Country of Origin India
Material Metal
Application For Liquid Measuring
Condition New
Frequency 0-25Ghz
Beam Angle 0-5 Deg
Range 0-30Mtr
Signal output 0-20mA

Model LV36 Hydrostatic liquid level transducers and transmitters with flush diaphragm is designed for a wide variety of level measurement applications. This model pressure sensor and is protected by the stainless steel (SS) housing. Featuring the flush diaphragm makes the LV36 suitable to measure viscous media or media with small particles, so as to have diverse measurement applications.The standard reference pressure is gauge (or relative) pressure realized through a vent tube in the cable. The reference pressure can also be absolute pressure on request.The measuring range of LV36 transmitters spans from 0~1 to 0~200 meter water column (mH2O) withmeasuring accuracy of 0.5%fs (fs = full scale). The output signal of transmitters can be configured toeither current loop (4~20mA,standard), voltage output (0.5~4.5V, 1~5V), or digital output (I2C orSPI). The millivolt signal directly from the Wheatstone ridge circuit is also available on request(transducer version).
Features

Measuring ranges: 0~1m, 2m, 3m, 5m, 6m, 8m, 10m, 12m 15m Higher length on request
Output signal: 4~20mA (standard), other o/p optional available on request
Accuracy: 0.5%fs o compensated temperature range: 0~70 C
Construction: all stainless steel housing, rigid and robust Environment protection: IP68

Technical Specification

Parameters		Units	Speciﬁcations
Measuring Media			Viscous Fluid, Or Fluid With Particles Which Is Compatible With 316l Ss
Measuring Ranges*		Mh2o	1m, 2m, 3m, 5m, 6m, 8m, 10m, 12m, 15m
Overload		%fs	150
Output Signal	For Transmitters For Transducers	Mv/V	4~20ma (standard). ≥ 15
Power Supply	For Transmitters	Vdc	24 (typical), 12, ..., 36
Excitation	For Transducers	Vdc Ma	5, ..., 10 0.5, ..., 2
Accuracy		%fs	≤ ±0.5
Response Time		%fs/year	≤ ±0.2 (standard), ≤ ±0.1 Is Available On Request
Long-Term Stability		Ms	< 1 (10%~90% Of Leading Edge)
Input Resistance	For Transducers	Ω	2000~8000
Output Resistance	For Transducers	Ω	3500~6000
Insulation Resistance		Mω @500Vdc	> 500 (transducer Only)
Storage Temperature Range		°C	-40~+100
Operating Temperature Range		°C	-20~+85s
Compensated Temperature Range		°C	0~70
Temperature Coefficient Of Span		%fso/°C	≤ ±0.02
Temperature Coefficient Of Zero		%fso/°C	≤ ±0.02
Process Connection			Submersible In
Electrical Connection			Φ7.3mm, 4-Core Shielded Black Pvc Cable With/Without A Vent Tube
Membrane Material			316l Ss
Housing Material			316 Ss
Environment Protection		Ip Rating	Ip68
Weight (without Cable)		Gram	~250
