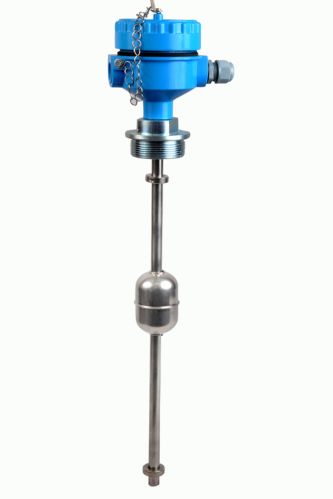

Metal Float Level Transmitter, for Liquid Measuring

Listing ID #6620252

  • MOQ 1 Piece
  • Country of OriginIndia
  • MaterialMetal
  • ApplicationFor Liquid Measuring
  • ConditionNew
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 14 Years
  • Nature of Business Retailer
  • GST No. 19ALKPS3548J1ZF

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Country of Origin India
  • Material Metal
  • Application For Liquid Measuring
  • Condition New
  • Frequency 0-25Ghz
  • Beam Angle 0-5 Deg
  • Signal output 0-20mA

Float Level Transmitters are ideal for continuous Level monitoring in Water, Diesel, Chemical and Oils for accurate level Measurement. The Output is not affected by liquid type, temperature, Pressure and other physical parameters. The Transmitter is factory calibrated and is ready to use.
Construction
Float Level Transmitter consists of non magnetic sealed stem containing series of reed switches and resistor, Float carrying magnet, Mounting adaptor (or flange) and enclosure containing electronics.
Consider our Float Level Transmitters for all your continuous liquidlevel monitoring needs like Water, Diesel, Lube oils, Fuels, Chemicals and Petrochemical liquids.
Here are just few areas where transmitter can be used.

  • Utilities
  • Beverage Industry
  • Medical
  • Pharmaceuticals
  • Food Processing
  • Breweries


Technical Specification

Overall Length 300 mm to 5000mm
Measuring Error ±0.25 % or Span
Output Temperature Co-efficient ±0.007% / oC
Resolution 5mm / 10mm
Ambient Temperature -40oC to 60oC
Liquid Temp. Range -40oC to 120oC
Liquid Min. Density 0.8 gm/cc
Max. Pressure 10 kg/cm2
Protection category Weather proof Ip66 to IS : 2147 (or) Flame Proof Gr. IIA & IIB to IS : 2148
Terminals Max. 1.5mm2 Flexible
Cable Entry PG11 for weather Proof ¾" Et for Flame proof (Glands not supplied)
Output 2 wire, 4-20 mA
3 wire, 0-10 V DC
RS 485
Process Connection Threaded Flanged Tri clamp Others
Excitation Voltage 10-30 V DC
Loop Resistance Max. 1200 Ohms
