- Rated VoltageFor neutral grounding or earthing resistor rated voltage means line- to neutral voltage i.e. System Voltage divided by root 3 i.e. 1.732
- Cabling or terminationSuitable arrangement and clearance is provided for termination of cable, flats or bus duct as per re
-
Supply Type
Manufacturer, Exporter, Supplier
-
Preferred Buyer Location
All over the world

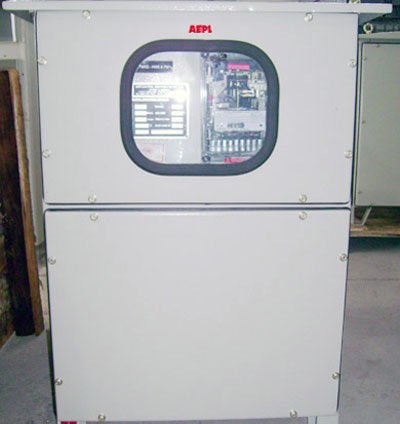

NGTR Panel Cubicle encloses Neutral Grounding Transformer (NGT) and Neutral Grounding Resistor (NGR) for grounding earthing of Neutral current during unbalanced three phase load of the generator. This is essentially required for protection of the generator.
Neutral Grounding Transformer (NGT) steps down the voltage of neutral bus from 6.6 KV 11 KV 15.75 KV level to 110 Volt or 220 Volt level. This stepped down voltage is connected to a netral grounding resistance and a ground earth terminal fro bringing the voltage level of neutral bus as close as possible to zero voltage level
