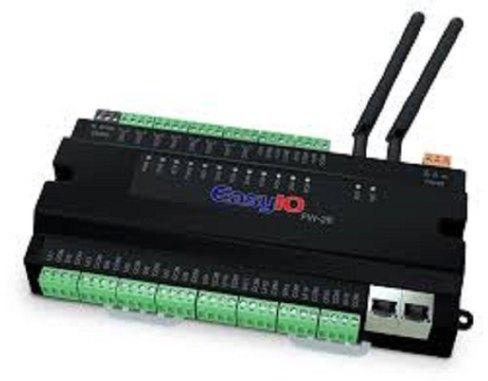

Network Controller

Listing ID #6252990

69,000 / Piece

Get Latest Price

Power Failure ProtectionSuperCap Apps Safety Backup
Ethernet1 x Ethernet Port 10Mb/100Mb 10Base-T/ 100Base-T interface, half or full duplex
Operating Temp0 to 65 Deg C (32 to 150 Deg F)
Operating Humidity10% to 90% Relative Humidity non-condensing
Supply Type Manufacturer, Exporter, Retailer, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Power Supply 24V AC +/- 5% or 24V DC +20% / - 15%
Brand Name EasyIO
Dimension 198 x 104 x 44 (mm), 7.8 x 4.1 x 1.7 (inches)
Network Security Standard IPv6, DHCP Client, SSL, TLS 1.2, 802.1x VPN Client and Server
Ethernet 1 x Ethernet Port 10Mb/100Mb 10Base-T/ 100Base-T interface, half or full duplex
RS 485 Ports 2 x RS485
Power Failure Protection SuperCap Apps Safety Backup
Model Name/Number FS-20
Storage Temp -20 to 85 Deg C ( -4 to 185 Deg F)
Operating Humidity 10% to 90% Relative Humidity non-condensing
Real Time Clock (RTC) Real Time Clock with min 5 days backup by superCAP
Flash Memory 8 GB
Operating Temp 0 to 65 Deg C (32 to 150 Deg F)
SD card Holder Yes. For Application backup Storage
RAM 512 MB
Consumption 18VA
Current Rating 500mA at 24VAC/VDC
Processor ARM Cortex A0 48 Mhz
Weight 436g / 15.4 oz
Main Processor 1.2 Ghz Quad Core ARM A7
