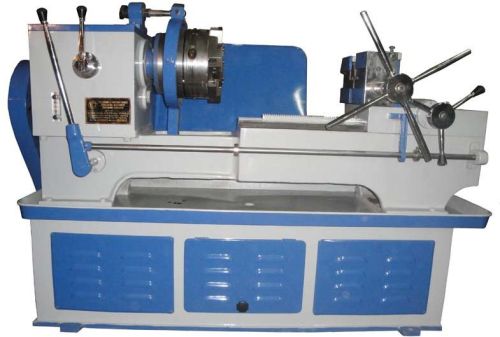

GEAR HEAD PILLAR TYPE THREAD CUTTING MACHINE
1/2'' to 2 .1/2 , 1'' to 4'' , 2 .1/2 to 6'', 4" to 8" Capacity
Product Feature
Model Super Deluxe= 12 mm to 65 mm
Saddle Movement= 175 mm
Spindle Speed Range=32-54-85
Number of Spindle Speed=3
Threading Capacity=12 mm to 65 mm
Production per Hour=45 to 80
H.P. Required=7.5 H.P.960 RPM
Automatic Leading Cut off=NIL
Space Required=1060 mm to 1650 mm
Model Super Deluxe= 25 mm To 100 mm & 65 mm to 150 mm
Saddle Movement=250 mm
Spindle Speed Range=28-48
Number of Spindle Speed=2
Threading Capacity= 25 mm To 100 mm & 65 mm to 150 mm
Production per Hour=35 to 40
H.P. Required=12.5 H.P.960 RPM
Automatic Leading Cut off=Provided
Space Required= 1525 mm to 2425 mm
Model Super Deluxe= 100 mm to 200 mm
Saddle Movement=250 mm
Spindle Speed Range=28-48
Number of Spindle Speed=2
Threading Capacity= 100 mm to 200 mm
Production per Hour=35 to 40
H.P. Required=15 H.P.960 RPM
Automatic Leading Cut off=Provided
Space Required=1775 mm to 2700 mm
Product Specification/Models
DESIGN & WORKMANSHIP: The National Cutting Tool thread cutting machines are designed to produce quality threads within the to lerance for which they were intended.
HEAD STOCK: A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings.
THE BED: The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit.
THE SADDLE: The Saddle is fitted on two pillers very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.
The APRON: The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. Its all gears are made of best quality steel.
VICE JAWS: The vice jaws made from the best quality steel are fitted on the saddle
