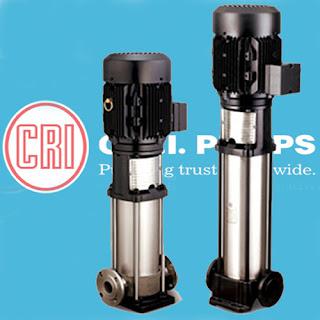

Multistage High Pressure Pump

Listing ID #1257782

Get Latest Price

Flange TypeRound (Optional: PJE, Oval)
Power Range0.37 kW - 110 kW
Flanch StandardDIN
Sealing TypeMechanical Seal (Cartridge Type)
Supply Type Supplier, Trader
Preferred Buyer Location All over the world

View More Details

Product Details

Sealing Type Mechanical Seal (Cartridge Type)
Flanch Standard DIN
Degree of Protection IP 55 (Optional IP44, IP54)
Max.Ambient Temperature 40°C
Flange Type Round / PJE
Pipe Connections DN 25,32,40,50,65,80 & 100
Max.Opearting Pressure 3MPa (30 bar)
Power Range 0.37 kW - 110 kW
Speed 2900 rpm
Max.Liquid Temperature -15°C to +120°C
Head Range 10 - 330 m
Class of Insulation 'F' / 'B' (Optional)
Max.suction Lift 7m
Versions A.C. Single Phase - 230V, 50Hz Permenent Split Capacitor (PSC) Inbuilt Thermal Overload Protector A.C. Three Phase - 380V / 415V, 50Hz
Discharge Range Upto 200 M³/h
Flange Type Round (Optional: PJE, Oval)
Duty S1 (Continuous)

C.R.I's vertical multistage centrifugal pumps (MV Series) are non self priming axial suction and delivery type available with DIN standard for connection. All components like impeller, diffuser & shaft of these pumps are made of corrosion resistant AISI Stainless Steel and designed to deliver the best possible hydraulic efficiency. 'O' ring and gasket prevents leakage at the intermediate casing during high pressure.

Features:

High operating efficiency
Precise parts for hygiene
Good suction lift and operating pressure
Dynamically balanced rotating parts
Balanced & Rigid construction
Availble MOC : S,N & C

Applications:

Pressure Boosting Units
Civil water supply
Industrial water supply
Fire fighting systems
Reverse osmosis system
HVAC
High pressure water supply
Irrigation
Washing Systems
Food processing industry
Golf Course
Mining
Boiler Feeding
Water Treatment Plants

Material Of Construction Of Pump

Part Name	Type - C	Type - S	Type - N
Pump outer sleeve	SS 304	SS 304	SS 316
Pump Bracket	CI	CI	CI
Pump base (Casing)	CI	SS 304	SS316
Impeller	SS 304	SS 304	SS316
Diffuser	SS 304	SS 304	SS316
Motor Frame	AL / CI	AL / CI	AL / CI
Shaft	SS 304 / 316	SS 304 / 316	SS 316
Mechanical Seal, Carbon, Viton	SiC & SiC / T.C & Carbon, Viton	SiC & SiC / T.C & Carbon, Viton	SiC & SiC / T.C & Carbon, Viton
Base plate	CI	CI	CI
