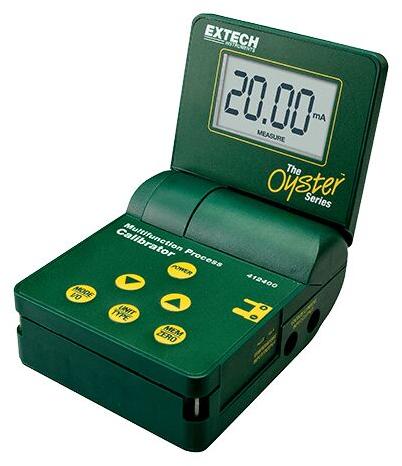

412400 multifunction process calibrator sources and measures thermocouples (j, k, and t), ma, mv, and v devices. The 24v loop supply drives current loads up to 1000 ohms. Memory for 5 user settable output values of each type for fast calibrations. Single/continuous step function for voltage and current. Comes complete with six aa batteries and calibration cable with spade lug terminals.

features:

source 0 to 24ma with 0.01ma resolution
measure 0 to 50ma (0.1ma resolution)
select type k, j, or t thermocouple for precision calibrations in c or mv
output 0 to 1999mv or 0 to 10.00v
measure 0 to 19.99v
single/continuous step function for voltage and current
self-contained 24v loop power supply drives current loads up to 1000ohm
5 stored calibration values of each type for fast calibrations
complete with six aa batteries and calibration cable with spade lug terminals

412400 multifunction process calibrator sources and measures thermocouples (j, k, and t), ma, mv, and v devices. The 24v loop supply drives current loads up to 1000 ohms. Memory for 5 user settable output values of each type for fast calibrations. Single/continuous step function for voltage and current. Comes complete with six aa batteries and calibration cable with spade lug terminals.

features:

source 0 to 24ma with 0.01ma resolution
measure 0 to 50ma (0.1ma resolution)
select type k, j, or t thermocouple for precision calibrations in c or mv
output 0 to 1999mv or 0 to 10.00v
measure 0 to 19.99v
single/continuous step function for voltage and current
self-contained 24v loop power supply drives current loads up to 1000ohm
5 stored calibration values of each type for fast calibrations
complete with six aa batteries and calibration cable with spade lug terminals
