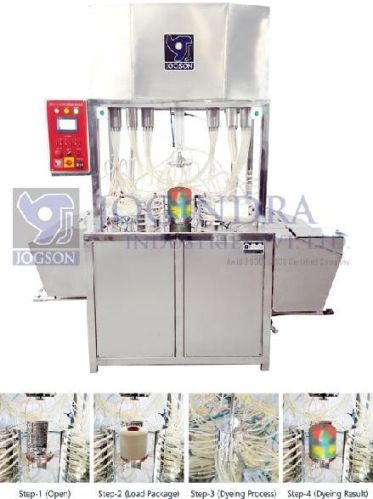

MULTICOLOR SPACE DYEING MACHINE

Listing ID #3918748

JOGSON Multicolor Space Dyeing Machine has been developed with the growing need of Space dyed yarn globally and tie & dye market locally. This machine is used for polychromatic dyeing of cones in different possible patterns. It is suitable to dye any type of yarn both natural and synthetic i.e. Polyester, Cotton, Rayon and many more. This machine is also able to space dye fine count filament polyester yarn in single cycle. It is one of the technologically advanced and successfully running machine in the market with newly updated JOGSON Pneumatic Actuated Distribution system, water saving system for vacuum pump, Pneumatic Stirrer for colour tanks, etc. The machine is offered in various models with options of 4, 6 and 8 colors depending on the needs of the buyer.

• With options of 4, 6 and 8 colours
• Machine body & all parts comig into contact with the dye liquor are made of AISI SS 316Ti/316L, highly corrosion resistant
• High vacuum through mono block vacuum pump
• Water saving system for vacuum pump
• Liquor transfer through seal less magnetic pumps
• Liquor dosing by highly efficient over head mounted JOGSON Pneumatic Actuated Distribution system
• Automatic dyeing cycles, high productivity, 1 dyeing cycle in about 60 seconds
• Suitable for any type of yarn natural or synthetic, wound on dye spring, plastic tube, steel tube, etc.
• Suitable for dyestuff like Acid, Reacted , Direct, Disperse and Pre-metallized
• Multiple design possibilities
• Power control panel with PLC & touch interface
• Floor level installation
• Individual colour tanks for stocking dyestuff

• Package Preparation : The yarn must be wound on Dye Spring, Plastic Tube, Steel Tube, etc.
• Recipe preparation : The chemicals & dye-stuff are mixed & put into colour tank
• Dyeing process : It starts with transferring of mixed liquor from each colour tank to overhead dosing cylinders & distributed uniformly to the package. The uniformity of the printed package is guaranteed both by JOGSON Pneumatic Actuated Distribution system mated with high suction of the vacuum pump
• Dyestuff Fixation : After dyeing, the package are placed in JOGSON Yarn Conditioning Machine for dyestuff fixation. The process of heat setting & conditioning varies on the type of yarn
• Washing : To wash out the excess dyestuff the package is then placed in JOGSON yarn dyeing machine
• Drying : Depending on the Yarn, JOGSON Hydro Extractor or JOGSON Hot Air Drier can be used to dry the wet package
