Multichannel Counter - Input Output Modules

Listing ID #3990500

Get Latest Price

Output TypeOpen Collector Output
Communication PortRS485 2 wire, Modbus RTU Protocol
Types of InputPulse input 1Hz to 10Hz
No. of Outputs8
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Output Type Open Collector Output
Supply voltage 230 VAC + 10%, 1ph, 50 Hz
No. of Outputs 8
Enclosure DIN rail mount, ABS molded , 32 terminal box Size : 70 x 150 x 114 mm ( H x W x D )
Communication Port RS485 2 wire, Modbus RTU Protocol
Types of Input Pulse input 1Hz to 10Hz
No. of Inputs 14
Maximum input amplitude 5VDC/ 12VDC /24V DC > FACTORY SET.

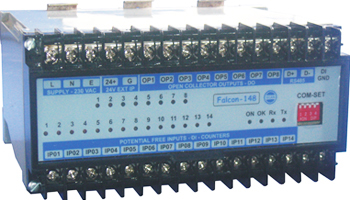

Multichannel Counter

FALCON148 is blind unit with RS485 connectivity which is best suitable for SCADA,Counting applications. This module uses MODBUS RTU protocol for serial communication. RS485 serial port is provided to make the module suitable for multidropping application. FALCON148 can also be used as slave module with PLC FALCON 148 module is optically isolated inputs, accepts potential free contact signals. FALCON148 can be used as a Production Counter, Revolution Counter, Fault Counter, Bottle Filling Counter, Digital Batch Counter, sensing level switches, proximity switches, door switches, alarm/ trip conditions in Panel, pump/ motor status, equipment status etc.
FALCON148 module is optically isolated open collector outputs to drive external Relay module. These outputs can be used to perform supervisory control actions like giving alarms, operating valves, switching ON/OFF pumps/ motors etc.

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Scan Electronic Systems was established in 1992 and since its inception it has delivered several high quality products to the Industry. The company is owned and run by highly qualified technocrats.
Scan Electronic Systems aims in providing indigenously developed high quality, innovative and economical products.
For two and half decades we have developed data acquisition systems for different industries like, Chemical, Pharmaceutical, Sugar Industry, Automobile, Meteorology, Power, Defence and Research organisations. We offer a wide range of products like process indicators, Flow Indicator Totalizer, Scanners, Data Loggers, Isolators, Converters, Protocol Converters ( Gateways ), SCADA Systems, PC based monitoring systems, Analog / Digital to Serial transmitters, Temperature Indicator.
Scan Electronic Systems is best known for its Universal Input Scanners / Data loggers. We are proud to be the Pioneers in introducing Universal Input Scanners / Data loggers in India.
Our latest product series named FALCON is another step ahead in field of Process Monitoring. Now you can watch your process from anywhere in World through Internet.
Scan Electronic Systems has a very strong technical background and has been continuously giving innovative solutions to the Industry. We have developed many micro controller based special purpose machines for various applications in Defence, Automobile Industry, Refrigeration and Compressors, Consumer Electronics Industry etc.
