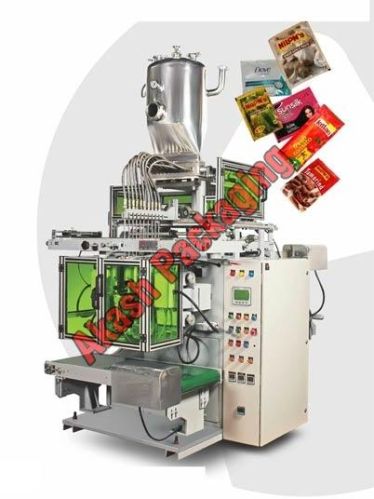

We bring forth Multi Track Pouch Packaging Machine (AP-400-600) which is used for the packaging of liquid & paste. Our Multi Track Pouch Packaging Machine is known for low maintenance, compact in size, robust and durability. The Multi Track Pouch Packaging Machine is appreciated for notching provision, variable pouch width & length, embossing and other features. It is ideal for packaging Shampoo, conditioner, oil, cream, tomato ketchup, liquid and others.
Specifications

• Machine Mechanism : Intermittent Motion
• Model : AP-400/600 Liquid/Powder
• Sealing : 4-side seal
• Rated speed : 100 strokes/min (depend upon the quantity & type of product)
• No. of tracks : Depend upon the width of the pouch
• Power consumption : 6 KW
• Max. roll width : 600 mm
• Max roll dia : 450 mm
• Real core dia : 150 mm/76 mm
• Max. length of Pouch : 150 mm (standard)/Up to 300 MM Maximum
• Main motor : 2.2 KW, 3-Phase, 415 Volts
• Net weight : 2000 kg
• Packing limit : 0.2 ml/gm 500 ml/gm
• Air consumption : 2CFM@ 6 Bar
• Temperature controller : PID based
• Machine colour : Mulshell grey
• Packing material : Heat saleable metalized poly and polyester poly
• Product to be packed : Shampoo, conditioner, oil, cream, tomato ketchup, liquid and others
• Vertical & horizontal sealing : Mechanically CAM driven/Servo Based
• Batch cutter operation : Pneumatic/Servo Based
• Film draw off : Clutch & brake/Servo Based
• Film tracking : Manual/automatic
• Control panel : Air-cooled with all applicable standards (IP 54 Grade & CAT IV Marked)
