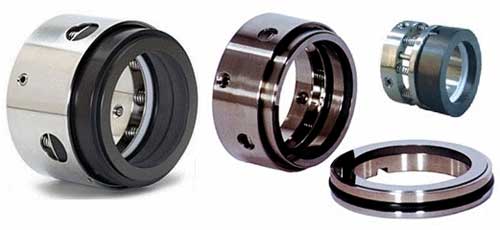

Contact SupplierWe are instrumental in offering superior quality Multi Spring Bi-Directional Mechanical Seals that are very commonly used in all kind of clear, non-corrosive and lubricating liquids in most of equipments. These Multi Spring Bi-Directional Mechanical Seals have many springs that cause uniform pressure all over seal faces and ensure the reliability under all conditions & result in better life. Our Multi Spring Bi-Directional Mechanical Seals are available in BCS-BS & BCS-US Series. Easy to Install, narrow cross-section area is very compact & simple. It is easy to install in smallest stuffing box and maintain. Our Multi Spring Bi-Directional Mechanical Seals are cost-effective because all parts are interchangeable, and can be converted from an unbalanced seals to a balanced seal by changing only the carbon. This means fewer spares to stock and much easier maintenance. These Multi Spring Bi-Directional Mechanical Seals can also be offered in double configuration for toxic, hazardous, costly & volatile liquids.
Pressure | 10 bar for Un-balance & 40 bar for Balance Seals |
---|---|
Temperature | -50oC to +280oC |
Speed | 20 m/s |
Shaft diameter | 12 to 200mm |
Seal Faces | Carbon, Silicon Carbide, Tungsten Carbide, Ceramic, Lecrolloy, Cr. Steel. |
Secondary Seals | Viton, Silicon, EPDM, PTFE, GFT, TCV(Teflon Encapsulated Viton) |
Metal Components | SS-304, SS-316, Alloy-20, Hastelloy-C, Monel, Titanium. |
