Lightweight, flexible, broadband, Multilayer PU foam based microwave absorber. Fabricated using six layers of carbon impregnated foam. FU-ML is an electrically graded flat PU foam based microwave....
View More Details
Send Enquiry

Company Information

Sahajanand Laser Technology Ltd
Sector 26, Gandhinagar, Gujarat
View Number
  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

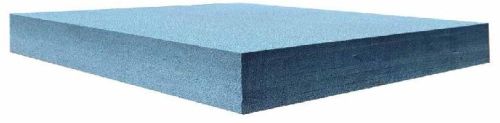

Lightweight, flexible, broadband, Multilayer PU foam based microwave absorber. Fabricated using six layers of carbon impregnated foam. FU-ML is an electrically graded flat PU foam based microwave absorber. Carbon loaded laminate polyurethane sheets. Can be readily cut on a band saw, with scissors, or a sharp knife. Available in various thicknesses from 18 mm to 120 mm and beyond. FU-ML is not waterproof and will not operate correctly when wet, since there is not washout, FU-ML will function as expected after being allowed to dry.

FEATURES:



  • Our foam absorbers are fire retardant with zero halogen means thereby avoid formation of toxic gases like HCl/HBr and poisonous gases like phosgene.
  • RoHS Compliant.



MATERIAL PROPERTIES:



  • Color: As Desired, generally available in blue color.
  • Typical Weight of 60 cm X 60 cm X 12 cm sheet: 2.5 kg.
  • Chemical Composition: Carbon ferrite impregnated polyurethane foam.
  • Maximum service temperature: 90 degree Centigrade.
  • Fire Retardency: Passes NRL-8093, test 1, 2 & 3 With Zero Halogen Means.



AREAS OF APPLICATION:

  • FU-ML has been used in reducing cross talk between adjacent antennas, shrouding antennas to improve the antenna patterns and undesired back lobes, as well as selective shadowing of parts of a target for RCS measurements.
  • Shadowing of posts and supports in anechoic chambers, and as absorbing blankets for testing radar systems without harm to personnel.
  • FU-ML is also effective in reducing surface current waves on metal shapes.


Absorber Type Thickness in mm Reflectivity(dB) for near normal incidence relative to metal surface of same size at different frequency
    800 MHz 900 GHz 2 GHz 40 GHz & Higher Frequencies
FU-ML-120 120 -15 -15 -17 -17

Company Details close-icon

RF & Microwave Division of Sahajanand Laser Tech. Ltd. provides a complete solution for the measurements in SHIELDED ANECHOIC CHAMBERS, RF Microwave Absorbers and related fields. The division is leaded by Dr.Kanhiya Lal (Executive Director-RF & Microwave Division) under the supervision of our Managing Director Shri Arvind L. Patel. The division is under continuous growth since 2007, started in association with earlier K.V. Microwave Materials have its genesis back in 1978. We provide an international quality product range. We supply our various products in India and abroad. With a dedicated team of scientists and engineers department is highly motivated to provide 100% customer satisfaction. The company provides solutions to scientific research institutes both private and government organizations around the globe. The major export hotspot for SLTL are the countries in Indian subcontinent, South East Asia, Middle East, Russia, China, Europe, USA, Canada, and Latin America. SLTL has carved out a specific position for its products in the Global market with in-house strong multi-disciplinary R&D team consisting of research scholars, engineers specialised in fields of microwave, software, electrical, mechanical and instrumentation. It believes in Excellence through Empowering Innovations.
SLTL RF & Microwave Division's Strength :
A pioneer Manufacturer of Microwave Absorbers in INDIA.
35+ years of experience in the RF & Microwave Industry.
Government approved In-house R&D facility.
An ISO 9001:2008 Certified Company.
22+ international installation base.
