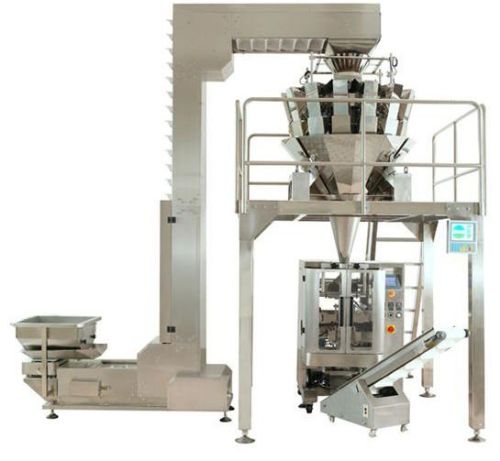

Contact SupplierWe are offering multi head weigher machine.
Description
the chips fill and packing machines are offered in compliance with advanced technological standards. The machine is based on plc control system and is simple to operate. Apart from chips, the machine is used for filling many more things.
Application
fill free flowing grains, pulses, seeds, salt, tea powder, coffee beans, maize, coffee powder, coconut powder, nuts, candies, dried fruits, pasta, vegetables, snacks, pet food, namkeen, low weighing engineering products and many more. .
Features
batch coding device (inkjet or hot foil coding)
the out take conveyor
check weigher and metal detector
bucket elevator
the hole puncher
paper cutting position and web tracking can be adjustable
gusting forming
vacuum pump in used to hold the pouch and making in to proper shape
construction made on ss 304
use the digital sensors to enhance speed precision and anti jamming.
With stable 10 14 bucket structure, to choose the best combination instantaneously from abundant weight combinations by computer
the opening and closing speed of weigher happens can be adjust to be avoiding material falling into pieces or being blocked
controlled by plc, advance technology and easy to operate.
Accuracy : +- 0.5 to 5g depending on the grains size and variation of product.
Multiple fills for bulk weight advanced digital signal processing and high speed and stable weighing.
Rejecting function: all over weight or down weight products will be rejected by the weigher automatically, so that will be easy to reweigh and save the packing film
specification
filling range
8 gm to 500 gm
filling system
10 head weigher
speed
w l
min : 90 50
max :175 250
packing material
multi layer low density polyethylene film
dim. (l x w x h)
1200x900x2100 mm (up to 500ml) 1200x900x2500 mm(500 ml to 1000 ml)
operational speed
1800 to 2200 pouches hour motor : ½ hp 220 v single
power consumption
motor : ½ hp 220 v single phase 50 hz
depending upon specific gravity of packing products
depending upon the flow rate & volume to the product to be packed
