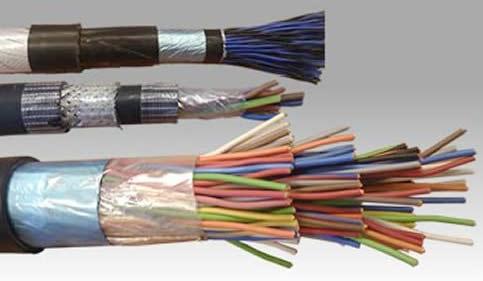

Excelling in offering Instrumentation Cables to our customers, we aim to be the best in the industry. Applied in normal or hazardous areas and suitable in process control, A/D converters and other modern microprocessor based instrumentation circuits, they are available with or without flame retardant properties. Their excellent noise resistance and induction resistance are a result of perfect designing for use in instrumentation circuits.
Specification : Voltage grade 650/1100 Volts (Uo/U). Conforming to standard specifications like - IS 5608, I, II, III, BS 5308 Pt-1, BS 1584 Pt1, 2, 3, IEC 189-5 Pt-3, BS 6360, BS 5099Pt-2.
Configuration : Multi-core / multi-pair / multi-quad laid up concentrically or in units.

Conductor : Solid / stranded, tinned / bare / silver-plated annealed high conductivity EC grade copper, sizes ranging from 0.5 sq. mm to2.5 sq. mm.

Insulation : PVC/ Solid PE/ special thermoplastic materials, heat resistant PVC-85ºC/105ºC operation. Halogen free polymeric or elastomeric insulation can be provided. Core identification by color-coding or printed numeral/letter.

Core-Wrap : One or more Plastic Tape.

Screen : Cores/Pairs/Quads can be individually or overall screened or both. Screening by Cu/Al-Mylar Tape or copper braid or Aluminum wire for reinforced Armor types.

Drain Wire : Drain -Wire of solid/stranded, bare/tinned copper wire normally provided with both individual and overall screen.

Mechanical Protection : Cables can be armored with galvanized steel wires & strips or double helical steel tape.

Inner and Outer Sheath : PVC Black/Grey.HR/FRLS PVC Sheathing or Halogen Free polymeric/elastomeric sheathing also available.
Additional Feature

• Communication Pair Bicolor Extrusion, Band Marking can be provided on request. Designed to combat all the basic type of noise which affects process instrument signals viz. static, magnetic, manmade and cross-talk.
• Reference specification for testing IS:10810, ASTMD2863, ASTMD2843, IEC-754(1), VDE 0815, and VDE 0207(PT5), IEE383, SS-424-14-75(F3), VDE0207 (PT 4), VDE0472, IEEE Transit No.467 and as per customer specification requirement.
